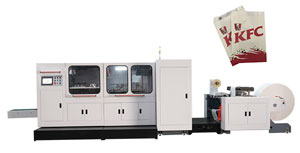

Automatic Flat Handle Paper Bag Making Machine

Flat handle paper bag machine is designed for the production of paper bags with flat handles. It is suitable to produce the shopping bags in some industries such as food and clothing. This machine is fully automatic and can produce the handle and paper bag in one time, so the product is the square bottom paper bag with the flat handle. The producing process is handle making, handle slitting, handle positioning and gluing, side gluing, tube forming, cutting, bottom opening and gluing, then bottom sealing, bag delivery. This machine use the Japan import servo motor and CPU, other parts also use the famous brand, the quality can be guaranteed.

Model	HWFD-330F	HWFD-450F
Paper Bag Width	220-330mm	240-450mm
Paper Bag Cutting Length	270-430mm	270-430mm
Paper Bag Bottom Width	60-180mm	90-180mmm
Paper Thickness	80-150gsm	80-150gsm
Machine Speed	30-110pcs/min	30-90pcs/min
Paper Roll Width	570-1050mm	690-1290mm
Paper Roll Diameter	1200mm	1200mm

Production Process

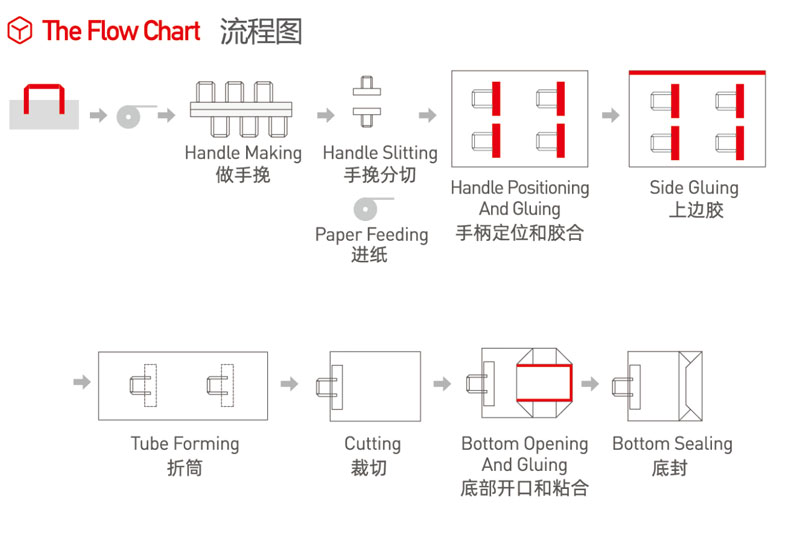

the flow chart:handle making ,handle slitting+paper feeding,handle positioning and gluing,side gluing,tube forming,cutting,bottom opening and gluing,bottom sealing

Our Advantages

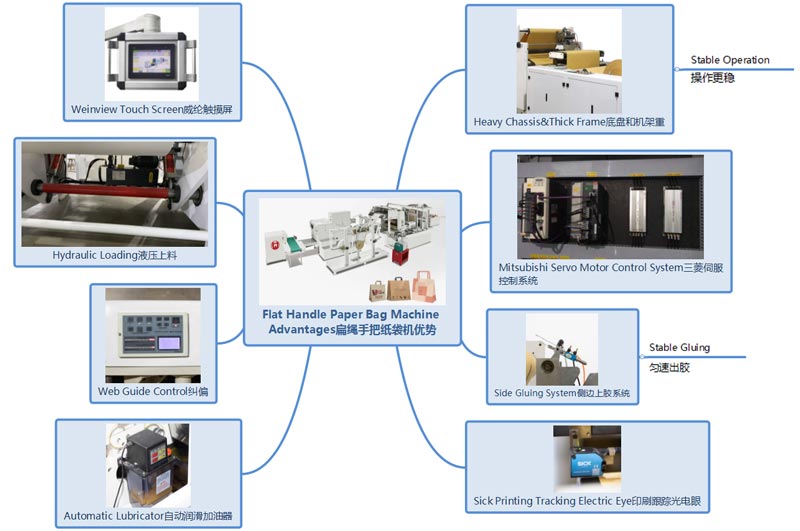

flat handle paper bag machine advantages:weinview touch screen,hydraulic loading,web guide control,automatic lubricator,heavy chassis&thick fram+stable operation,mitsubishi servo motor control system,side gluing system+stable gluing,sick printing tracking electric eye

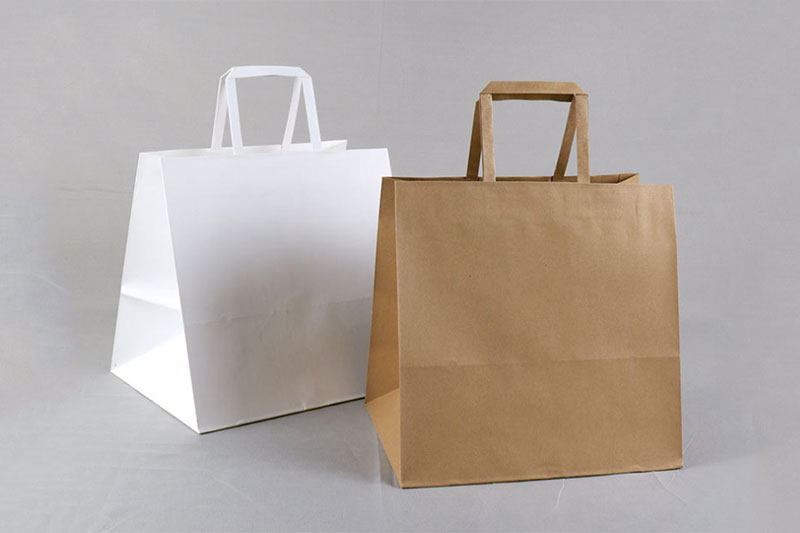

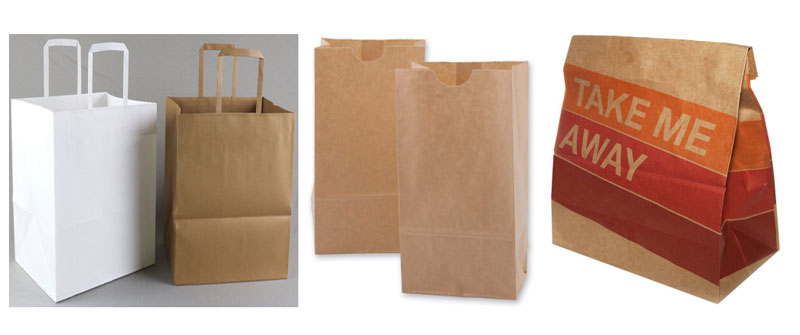

Paper Bag Samples

paper bag samples img,take me away

Related Products

High Speed V Bottom Paper Bag With Film Making Machine

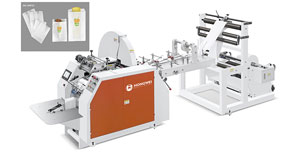

Common V Bottom Paper Bag Making Machine

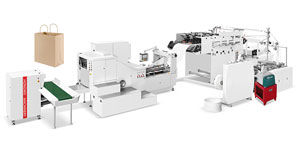

Automatic Twisted Handle Paper Bag Making Machine

Packing & Loading

packaging +shipment

After Sales Service

1.Quality Commitment: one year guarantee,Lifelong maintenance, Vulnerable parts are provided free of charge within 12 months.
2. After-sales Service: 24hours online to help customer solve problem.
3. Operation Guide: after the customer receives the goods, the engineer will guide the installation throughout, we also install the CCTV in the machine to help customer operate.
4. Machine Parts: all machine parts are imported from famous imported brands, which are convenient for customers to repair and buy by themselves.

FAQ

Q: Can l visit your factory?
A:We warmly welcome your arrival, Before you take off from your country, please let us know. We will show you the way and arrange time to pick you up if possible.

Q:How to solve the equipment trouble during using ?
A: Please email us about problem with pictures or a small video will be better,we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.

Q:Could you print our company LOGO on the nameplate and package?
A:Yes, we can do that.

Q: Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.

Q:What services can we provide?
A: Accepted Delivery Terms: FOB,CFR,CIF,EXW
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Spanish

Q: What can you buy from us?
A: Square Bottom Paper Bag Machine, V Bottom Paper Bag Machine, Slitting Machine, Printing Machine And Handle Machine.

Q: Why should you buy from us not from other suppliers?
A: We have more than 20 years of rich experience for machinery manufacturing.
