The common v bottom paper bag machine is designed to produce v bottom paper bags use the paper rolling: kraft paper or printed paper as raw materials. It through material loading, side gluing, forming, interrupt, bottom glue, folding bottom and output the bags.
Product Description
The common v bottom paper bag machine is designed to produce v bottom paper bags use the paper rolling: kraft paper or printed paper as raw materials. It through material loading, side gluing, forming, interrupt, bottom glue, folding bottom and output the bags. It can produce different width bags, only change the plate, also can change the length by servo motor control.Strong structure ensures the quality and machine's life, pneumatic loading, save labor cost.
Machine Parameter
|
Model |
HWJD-400 |
HWJD-650 | HWJD-850 |  |
|
Width of Bag(mm) |
70-260 | 80-350 | 80-450 | |
|
Length of Bag(mm) |
110-480 | 220-650 | 450-850 | |
|
Paper Grams (g/m2) |
40-80g/m^2 |
40-80g/m^2 | 40-80g/m^2 | |
|
Paper Material Width (mm) |
200-740mm |
220-960mm | 220-1300mm | |
|
Maximum Discharge Diameter(mm) |
800mm |
800mm | 800mm | |
|
Max Speed (pcs/min) |
60-400pcs/min |
60-400pcs/min | 30-200pcs/min | |
|
Total Power(kw) |
6KW |
8kw | 10kw | |
|
Machine Weight(kg) |
1450KG |
2000KG | 3000KG | |
|
Machine Size |
4400x1700x1600mm |
4800X2000X1600 | 7500X2000X2000 |

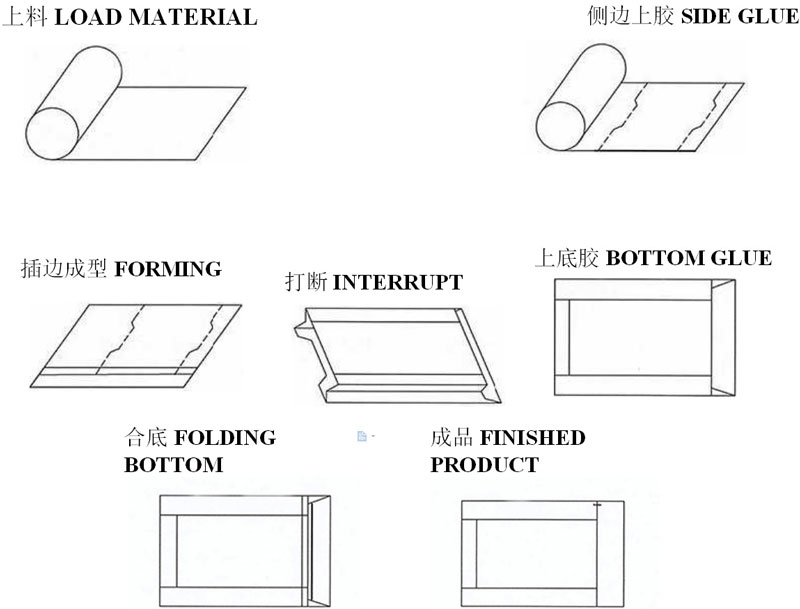

Product Process
MACHINE DETAILS

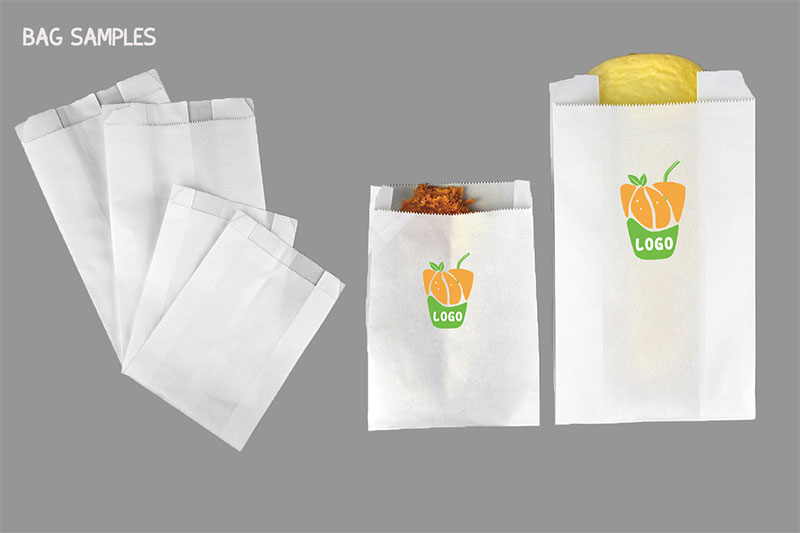

SAMPLE PICTURE:
PRODUCTS FEATURE:
Our Service and Advantage
1.SGS, CE certificate, Production Assessment, Gold Supplier certificated.
2.High quality products and competitive price.
3.12 months warranty, Longer service life.
4.Video support, Engineer debug is available.
5.Testing before shipment.
Packing:
Stretch film packing & in container.
FAQ：
Q:Are you manufacturer or trade company?
R:We are manufacturer,and have the import and export qualification. .
Q:Visiting factory is allowed or not?
A: Yes, we welcome customers visiting our factory. Our factory is located Ruian city, Zhejiang province,China mainland.
Q: Which certificate do you have?
R: CE and ISO.
Q: What is your term of payment?
R: 30% down payment before producing and 70% balance payment before shipping.
Q: Which payment form you can accept?
R: T/T, L/C,Western Union, PayPal etc. We accept any convenient and swift payment term.
Q: How to solve the equipment trouble during using ?
A: Please email us about problem with pictures or a small video will be better, we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.
