Name: Automatic High Speed V Bottom Paper Bag Machine With Printing Inline
Brand: Hongwei
SKU: 00067
Rating: 4.1 (84 reviews)

Product Description

The high speed v bottom paper bag machine with printing inline us rolls of primary color paper rolls such as kraft paper, glossy paper, medical paper, etc as raw material, then printed by the inline printing. So the v bottom paper bag making machine can use the printed paper roll to produce the paper bags. The paper bag process consists of roll discharge (hydraulic feeding, automatic correction, constant tension), precut, middle (side) seam gluing, color code tracking, raw material into a cylinder, fixed-length pulling and breaking, bottom gluing, bottom folding. It is an ideal equipment for producing various paper bags, bread bags, snack food bags, bread bags, and other environmentally friendly paper bags.

Paper Bag Machine Parameter

Model	HWJD270	HWJD350
Paper Grams	35-80gsm	35-80gsm
Bag Tube Length	155-360mm(4hub) 365-450mm(2hub)	155-400mm(4hub) 405-765mm(2hub)
(H) Step Height	17mm	17mm
Bag Length	95-355mm(4hub) 360-445mm(2hub)	150-395mm(4hub) 400-760mm(2hub)
Bag Width	80-270mm	80-350mm
Speed	50-500pcs/min	50-500pcs/min
Insert Paper Edge Depth	10-60mm	10-60mm
Paper Roll Width	220-810mm	220-970mm

Printing Machine Parameter

TYPE	HWFP21000	HWFP41000
Max. Printing material width	1000mm	1000mm
Max. Printing width	960mm	960mm
Printing length range	230-800mm	230-800mm
Printing speed	5-100m∕min	5-100m∕min
Register precision	≤±0.20mm	≤±0.20mm
Thickness of plate （including the thickness of double sides glue）	2.28mm	2.28mm

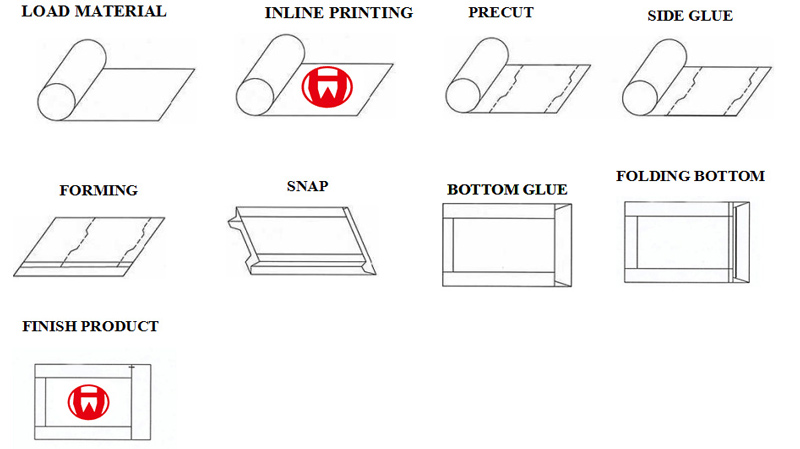

Product Process

Automatic high speed v bottom paper bag machine with printing inline

MACHINE DETAILS

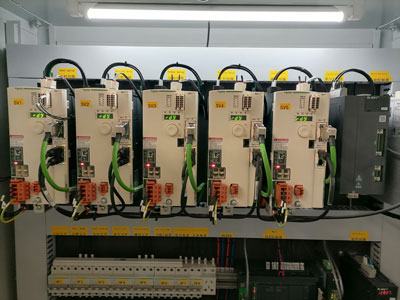

	Whole Servo System The original French SCHNEIDER servo motor is matched with the German original SICK photoelectric eye correction to accurately track the size of the printed bag.

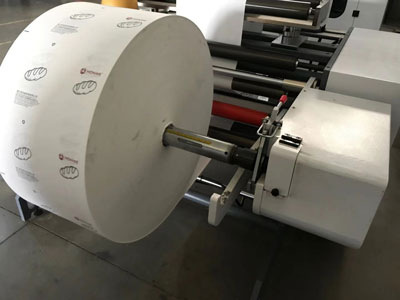

	Hydraulic loading Material loading and unloading adopts hydraulic cylinder lifting structure, and unwinding adopt automatic constant tension control.

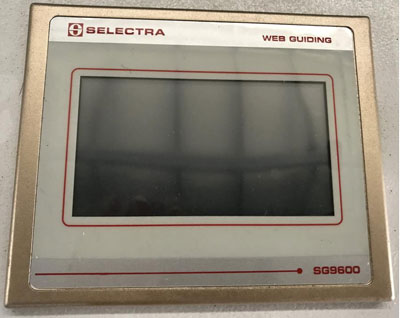

Web Guiding The rectification of raw materials adopts Italian SELECTRA, which reduces the time of roll registration

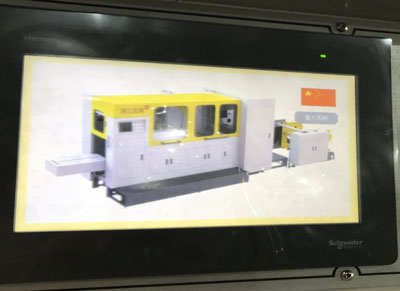

Touch screen computer Using French SCHNEIDER touch screen man-machine interface, the operating functions are clear and easy to control.

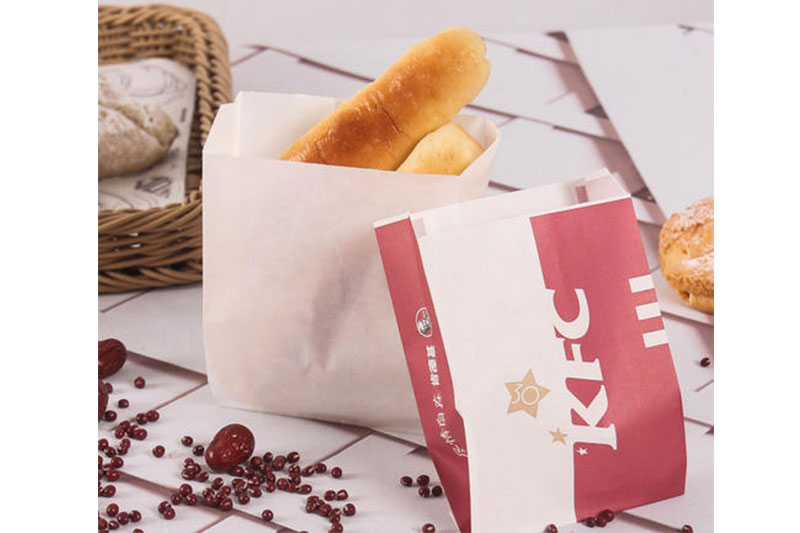

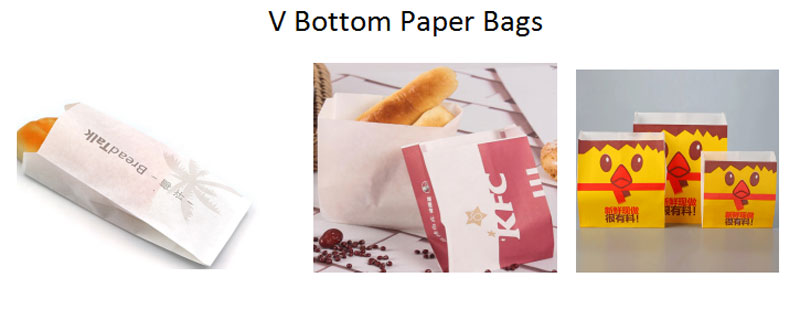

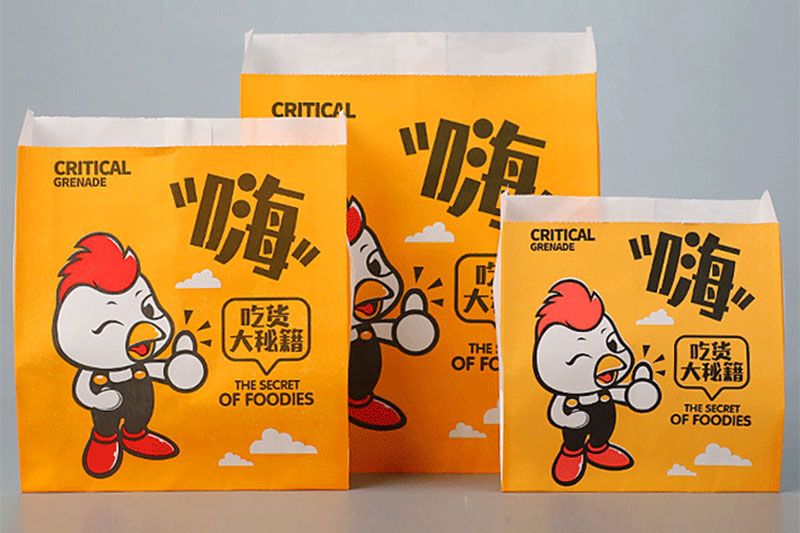

SAMPLE PICTURE:

high speed v bottom paper bag with film making machine inline

PRODUCTS FEATURE:

1) 7 servos, 9 motors
7 servo control: precut, two traction rolls, press paper,snap,hub, conveyor belt
2 ordinary motors: glue pasting evenly, hydraulic loading material
2)Way out of the bag:collect the paper more easily and quickly
3)Heavy chassis: more stable operation
4)Intelligent out of glue:more save, more evenly

Our Service and Advantage

Installation and training
24 hours Online service
12 months warranty, Longer service life
After sales service
Customized according to customer needs

twisted handle making machine

Packing:

Stretch film packing & in container.

twisted handle making machine

FAQ：

Q: Can I become a distributor of Hongwei?
R: Yes, of course you can.

Q: how can we guarantee quality?
R: Always a pre-production sample before mass production;
Always final Inspection before shipment;

Q: Are you a trade or manufacturer
R: We are manufacturer.

Q: Why I choose your company?
A: a) We are manufacturer
b) We have made machine about 25 years with strong experience and advanced technology.
c) Best Quality & Best Service with Competitive price.
d) 100% inspection Before Shipment, and got CE certificate.
e) We have Professional technical team, supply 24 hours service.
