Product description:

Square bottom paper bag with flat handle making machine can use the rolling paper, which is made of primary color paper or printed to produce square bottom paper bag at one time. It can use together with the flat handle making machine to produce the paper bag with flat handle. The flat paper is folded sequentially in one direction to make the 8-folded flat paper handle, this handle is then pasted in the paper bag which produced with the square bottom paper bag machine. This machine can produce various of paper bags, with fast speed, high production efficiency, is an ideal equipment for paper bag production.

Paper Bag Machine Parameter

Model	HWFD220	HWFD280	HWFD330	HWFD450	HWFD450B	HWFD540
Bag Tube Length	190-370mm	270-530mm	270-530mm	285-530mm	420-760mm	420-760mm
Bag Length	150-320mm	225-470mm	225-470mm	225-470mm	320-680mm	340-680mm
Bag Width	80-220mm	120-280mm	120-330mm	220-450mm	200-450mm	250-540mm
Bottom Width	50-120mm	60-160mm	60-180mm	80-220mm	80-240mm	120-260mm
Side Edge Width	20-30mm	25-30mm	25-30mm	30mm	30mm	30-40mm
Bottom Edge Width	10-20mm	15-25mm	15-25mm	20-30mm	20-30mm	20-30mm
Paper Thickness	50-130g/㎡	60-160g/㎡	60-160g/㎡	80-160g/㎡	80-160g/㎡	90-160g/㎡
Paper Inner Core Diameter	ᴓ76mm(3”)	ᴓ76mm(3”）	76mm(3”）	76mm(3”）	76mm(3”）	76mm(3”）
Paper Roll Diameter	ᴓ1300mm	ᴓ1300mm	ᴓ1300mm	ᴓ1300mm	ᴓ1300mm	ᴓ1300mm
Paper Roll Width	280-710mm	385-910mm	385-1050mm	630-1370mm	590-1370mm	770-1640mm
Bag Making Speed	30-200pcs/min	30-180pcs/min	30-160pcs/min	30-150pcs/min	30-120pcs/min	30-120pcs/min
Air Source	≥0.12m³/m 0.6Mpa	≥0.12m³/m 0.6Mpa	≥0.12m³/m 0.6Mpa	≥0.12m³/m 0.6Mpa	≥0.12m³/m 0.6Mpa	≥0.12m³/m 0.6Mpa
Power Supply	10kw	12kw	12kw	12w	16.5kw	16.5kw
Machine Weight	5500kgs	7000kgs	8000kgs	9000kgs	10000kgs	12000kgs
Machine Dimension	8000X2980X1800mm	9700X2980X1900mm	9800X3050X1900mm	10200X3150X2200mm	11265x3400x2200mm	11250X3400X2160mm

Flat Handle Production Line

Handle Spacing	84mm fixed
Paper Rope Width	12mm
Paper Rope Width	100mm
Paper Width	40mm
Paper length	152mm
Paper Thickness	80-140gsm
Production Speed	33-43pcs/min
Voltage	380V
Total Power	10KW
Total Weight	3400KG
Overall Dimension	700016001500mm
Glue Type	Hot-melt glue

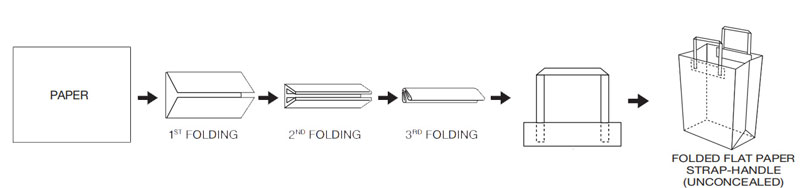

Product Process

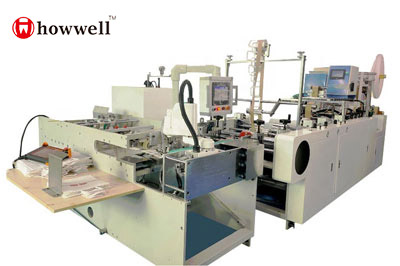

MACHINE DETAILS

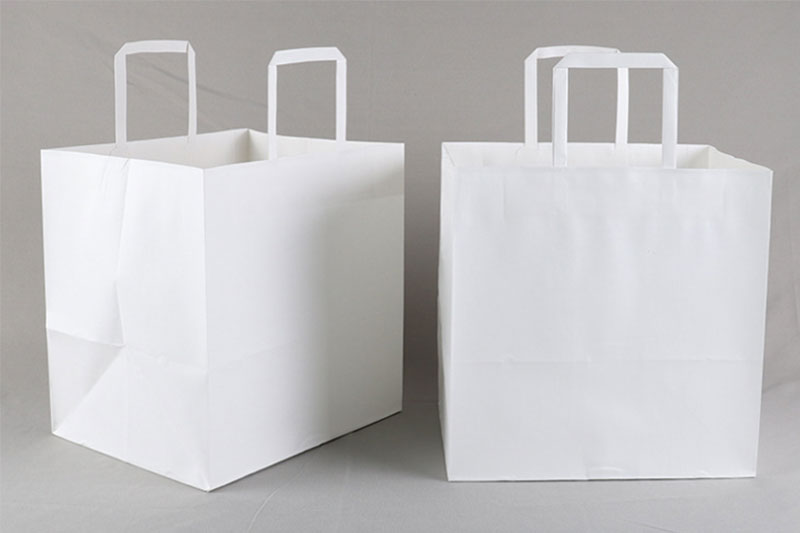

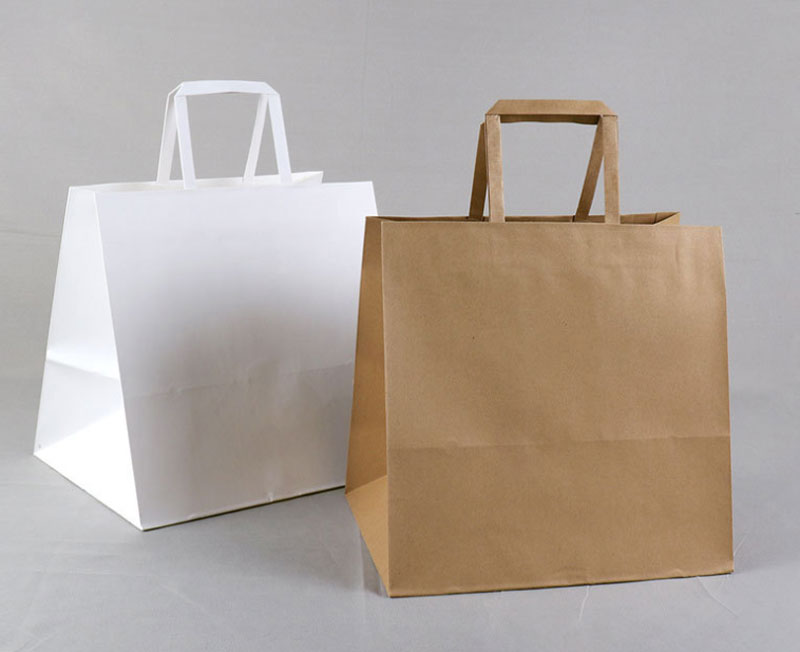

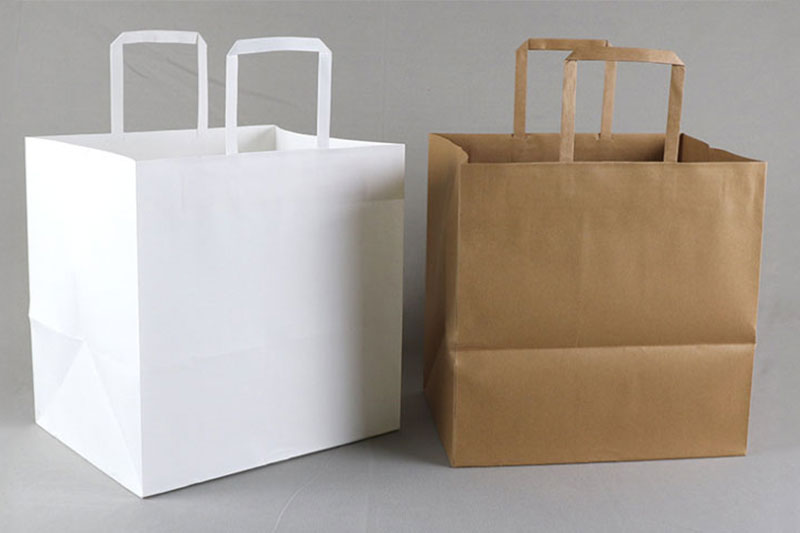

SAMPLE PICTURE:

PRODUCTS FEATURE:

Stable running, high productivity
Easy operation and lose noise
High accuracy
Whole machine controlled by servo motor
hydraulic lifting structure

Our Service and Advantage

Packing:

Stretch film packing & in container.

FAQ：

Q: Are you manfacturer or trading company?
A: We are the manufacturer and have our own workers and factory.

Q: What can I buy from you?
A: We produce the paper bag production line: sqaure bottom paper bag machine, v bottom paper bag machine, shopping bag machine, printing machine, slitting machine and handle machine. We also provide the raw materials: kraft paper, printed paper and glue.

Q: Have your products been exported?
A: Yes, they have been exported to USA, Canada, Australia, Russia,Chile,Panama,Nicaragua, UAE, Saudi Arabia,Egypt, Vietnam, Indonisia, India, Thailand, Pakistan, Philippines, Singapore and so on.

Q: How long history of your factory?
A: We have 20 years experience on machines, our products sell very well all over the world.

Q: Visiting factory is allowed or not?
A: Yes, we welcome customers visiting our factory. Our factory is located Ruian city, Zhejiang province,China mainland.

Q: How to solve the equipment trouble during using ?
A: Please email us about problem with pictures or a small video will be better,we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.

We also semi-automatic flat handle making machine, if you need this model, please contact me.
