Product description：

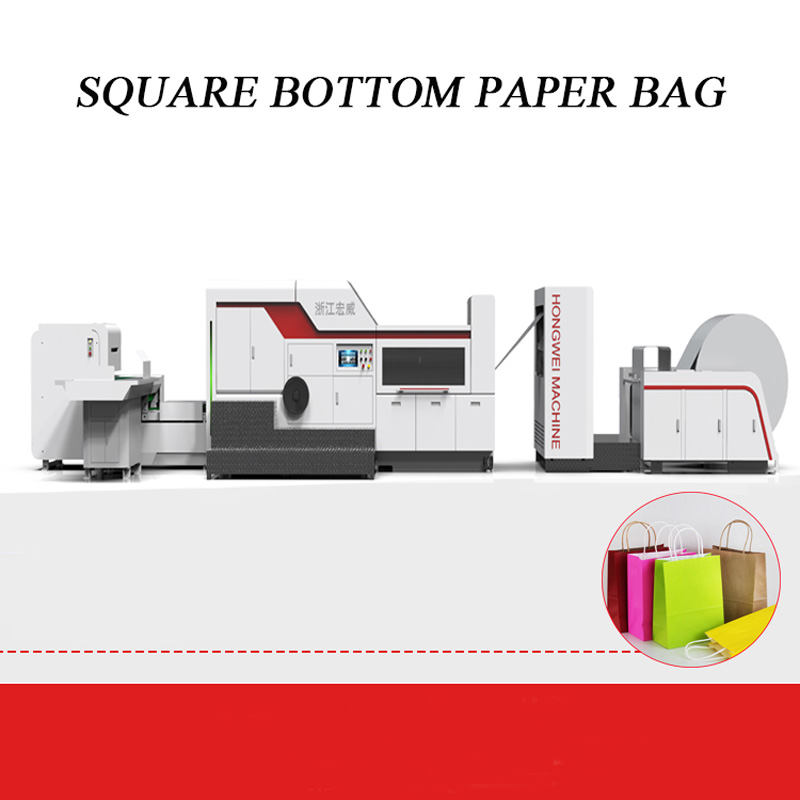

Paper Shopping Bag Making Machine

Model	HWFD220	HWFD280	HWFD330	HWFD450	HWFD450B	HWFD540
Bag Tube Length	190-370mm	270-530mm	270-530mm	285-530mm	420-760mm	420-760mm
Bag Length	150-320mm	225-470mm	225-470mm	225-470mm	320-680mm	340-680mm
Bag Width	80-220mm	120-280mm	120-330mm	220-450mm	200-450mm	250-540mm
Bottom Width	50-120mm	60-160mm	60-180mm	80-220mm	80-240mm	120-260mm
Side Edge Width	20-30mm	25-30mm	25-30mm	30mm	30mm	30-40mm
Bottom Edge Width	10-20mm	15-25mm	15-25mm	20-30mm	20-30mm	20-30mm
Paper Thickness	50-130g/㎡	60-160g/㎡	60-160g/㎡	80-160g/㎡	80-160g/㎡	90-160g/㎡
Paper Inner Core Diameter	ᴓ76mm(3”)	ᴓ76mm(3”）	76mm(3”）	76mm(3”）	76mm(3”）	76mm(3”）
Paper Roll Diameter	ᴓ1300mm	ᴓ1300mm	ᴓ1300mm	ᴓ1300mm	ᴓ1300mm	ᴓ1300mm
Paper Roll Width	280-710mm	385-910mm	385-1050mm	630-1370mm	590-1370mm	770-1640mm
Bag Making Speed	30-200pcs/min	30-180pcs/min	30-160pcs/min	30-150pcs/min	30-120pcs/min	30-120pcs/min
Air Source	≥0.12m³/m 0.6Mpa	≥0.12m³/m 0.6Mpa	≥0.12m³/m 0.6Mpa	≥0.12m³/m 0.6Mpa	≥0.12m³/m 0.6Mpa	≥0.12m³/m 0.6Mpa
Power Supply	10kw	12kw	12kw	12w	16.5kw	16.5kw
Machine Weight	5500kgs	7000kgs	8000kgs	9000kgs	10000kgs	12000kgs
Machine Dimension	8000X2980X1800mm	9700X2980X1900mm	9800X3050X1900mm	10200X3150X2200mm	11265x3400x2200mm	11250X3400X2160mm

Paper Shopping Bag Making Machine

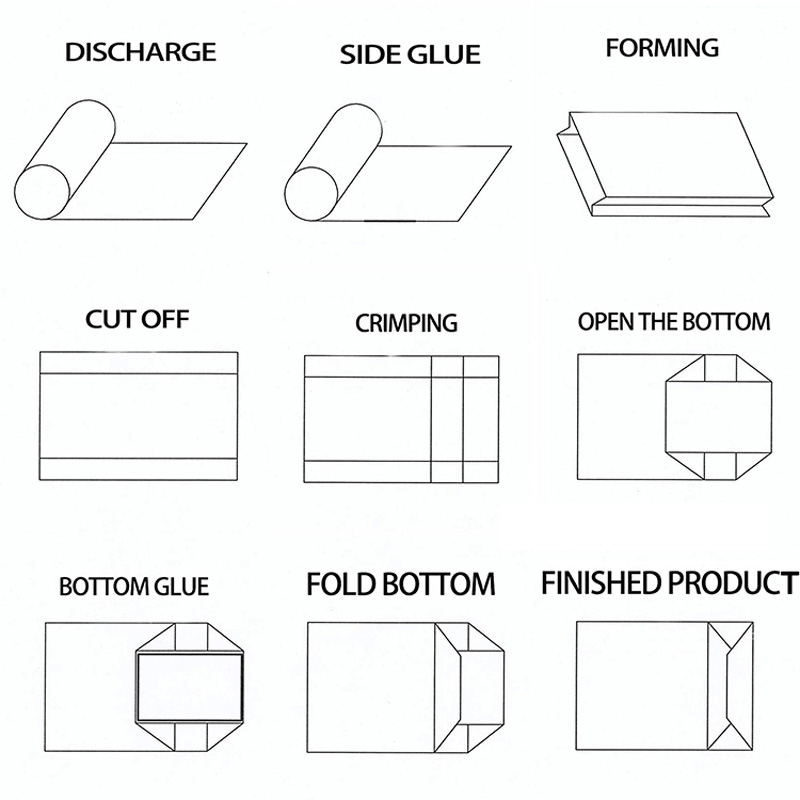

Forming Process:

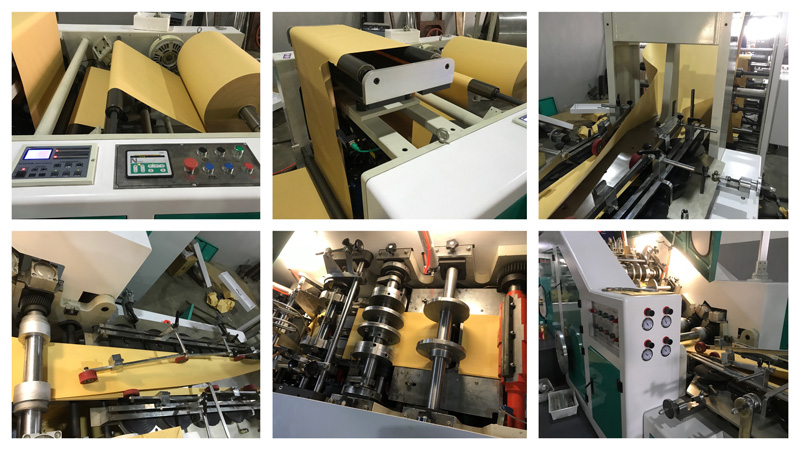

Machine Details

Sample Picture:

PRODUCTS FEATURE:

Rolling feed square bottom paper bag making machine, it uses paper roll in blank or printed as raw material. Consists of automatic centre forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bag collecting one time, the machine is more convenient, more efficient, more stable, can produce a variety of different paper bags, leisure food bags, bread bags, dried fruit bags and so on environmentally friendly paper bag machine equipment.
In addition, with twisted rope or flat handle machine, make the products more competitive and diversified.

OUR SERVICE:

Our company offers a twelve-month warranty.
Provide trial video before shipment.
24 hours online customer service.
Provide engineers to go abroad to the site debugging and training services (customers pay fees, except during the epidemic period).

OUR ADVANTAGE:

Our company is engaged in direct foreign trade for more than 10 years, with rich experience and high quality reputation.
All the machines have passed CE and ISO certification and meet export standards.
As a professional paper bag manufacturer, we speak directly to the engineers and get to know the machines better.
As a factory, we can offer better prices.

Packing:

Stretch film packing & in container.

Paper Shopping Bag Making Machine

FAQ：

Q:Are You a Factory or Trading Company?
A:We are a factory, with 20 years experience on machines, our products sell very well all over the world.

Q:Where is your factory located? How can I visit there?
A:Our factory is located in Ruian Zhejing China. The nearest airport is Wenzhou airport. It's about 40 minutes by plane from Shanghai (5 hours by train). All our clients, from home or abroad, are warmly welcomed to visit us.

Q:How long is your warranty? And what is the warranty?
A:The warranty period is 12 months, within the warranty period, we provide free replacement of damaged parts caused by quality problems.
All faults caused by improper use of the buyer (including unauthorized modification of the PC and the built-in software of the touch screen) are not covered by the warranty (except for wearing parts).
