Product Description

Paper bag with window square bottom production machine use the kraft paper roll or printed paper roll as raw materials to produce paper bag by square bottom paper bag machine with high speed and save labor cost and improve efficiency. Perfect fit for the paper bag market, gluing method using intelligent gluing system, fast speed, high production efficiency, suitable for the production of a variety of food bags, portable shopping bags and other high-end packaging paper bags. It can according to customer requirements, to add the extra window open device to produce the paper bag with window.

Paper Bag Machine Parameter

Model	HWFD220	HWFD280	HWFD330	HWFD450	HWFD450B	HWFD540
Bag Tube Length	190-370mm	270-530mm	270-530mm	285-530mm	420-760mm	420-760mm
Bag Length	150-320mm	225-470mm	225-470mm	225-470mm	320-680mm	320-680mm
Bag Width	80-220mm	120-280mm	120-330mm	220-450mm	200-450mm	250-540mm
Bottom Width	50-120mm	60-160mm	60-180mm	80-220mm	80-240mm	120-260mm
Side Edge Width	20-30mm	25-30mm	25-30mm	30mm	30mm	30-40mm
Bottom Edge Width	10-20mm	15-25mm	15-25mm	20-30mm	20-30mm	20-30mm
Paper Thickness	50-130g/㎡	60-160g/㎡	60-160g/㎡	80-160g/㎡	80-160g/㎡	90-160g/㎡
Paper Inner Core Diameter	ᴓ76mm(3”)	ᴓ76mm(3”）	76mm(3”）	76mm(3”）	76mm(3”）	76mm(3”）
Paper Roll Diameter	ᴓ1300mm	ᴓ1300mm	ᴓ1300mm	ᴓ1300mm	ᴓ1300mm	ᴓ1300mm
Paper Roll Width	280-710mm	385-910mm	385-1050mm	630-1370mm	590-1370mm	770-1640mm
Bag Making Speed	30-200pcs/min	30-180pcs/min	30-160pcs/min	30-150pcs/min	30-120pcs/min	30-120pcs/min
Air Source	≥0.12m³/m 0.6Mpa	≥0.12m³/m 0.6Mpa	≥0.12m³/m 0.6Mpa	≥0.12m³/m 0.6Mpa	≥0.12m³/m 0.6Mpa	≥0.12m³/m 0.6Mpa
Power Supply	10kw	12kw	12kw	12w	16.5kw	16.5kw
Machine Weight	5500kgs	7000kgs	8000kgs	9000kgs	10000kgs	12000kgs
Machine Dimension	8000X2980X1800mm	9700X2980X1900mm	9800X3050X1900mm	10200X3150X2200mm	11265x3400x2200mm	11250X3400X2160mm

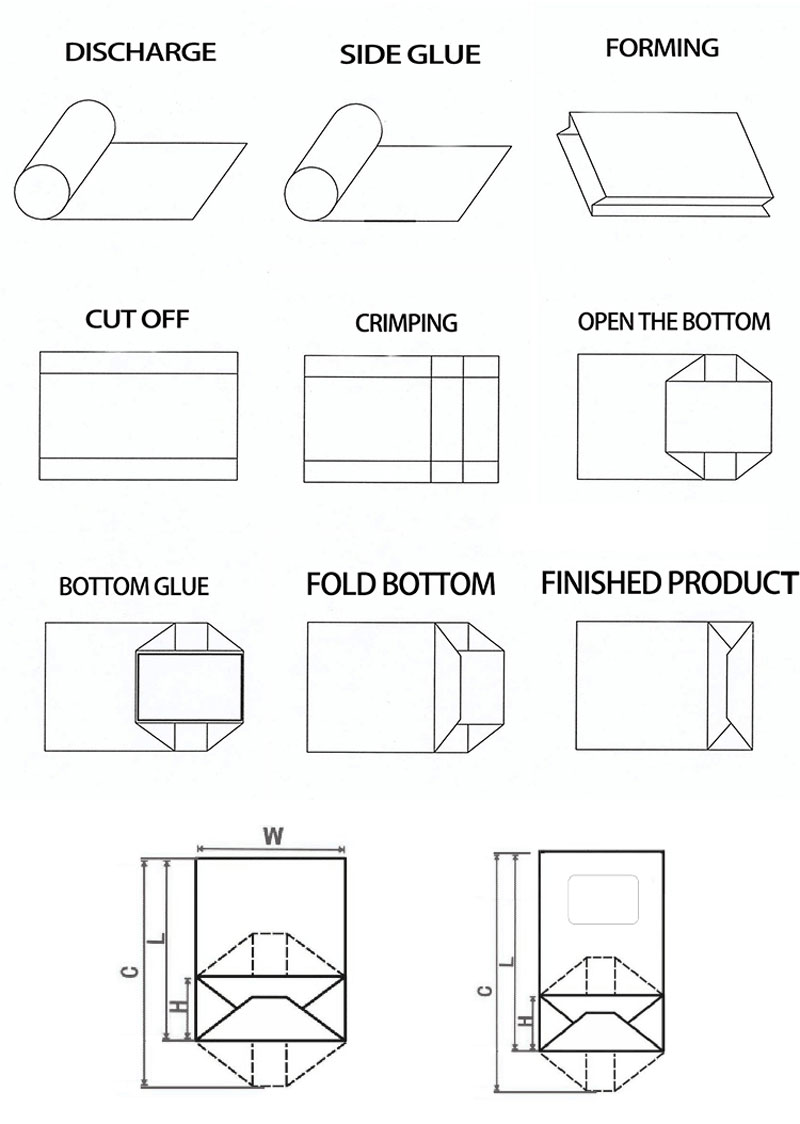

Product Process

square bottom paper bag with front window making machine

MACHINE DETAILS

square bottom twisted handle paper bag making machine Kraft Paper Bag With plastic window Making Machine

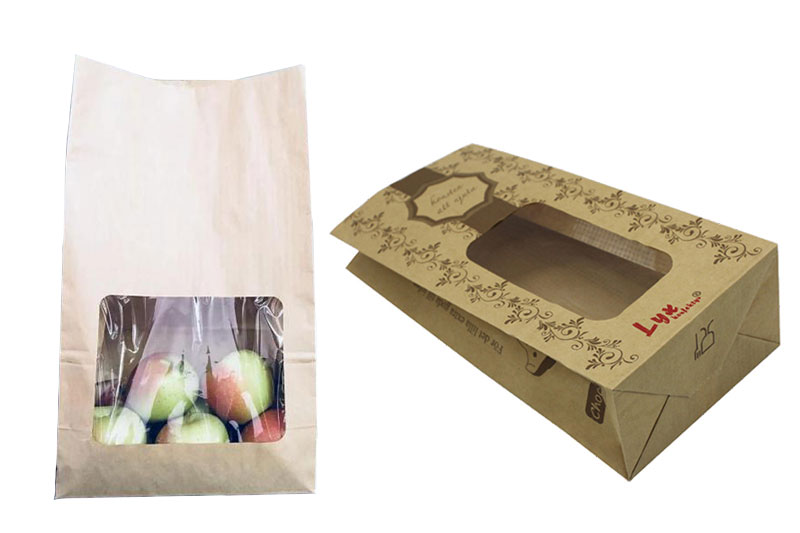

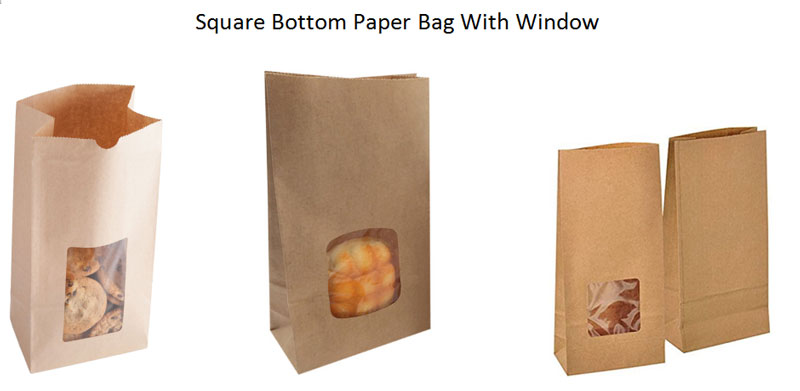

SAMPLE PICTURE:

square bottom Paper Bag With plastic window Making Machine

PRODUCTS FEATURE:

Automatic stop without material detection
hydraulic lifting structure, and the unwinding adopts automatic tension control
Servo control system and PLC
Stable running, easy to operate, high accuracy

Our Service and Advantage

After sales service
12 months warranty period
Installation and training
24 hours Online service,lifelong after-sales service

twisted handle making machine

Packing:

Stretch film packing & in container.

twisted handle making machine

FAQ：

Q: Are you manufacturer or trading company?
A: We are the manufacturer.

Q: Where are your factories located?May I have a visit?
A:First of all,warmly welcome! Our factory located in Ruian city, Zhejiang Province

Q: Do you have machines in stock to sell?
A: No,we according to customer requirements to manufacture the machine.

Q: How is the quality of your machine?
A: We have 20 years experience of manufacture the machine, choose the famous brand parts to produce the machine, the quality can be guaranteed.

Q: What about the lead time for mass production?
A: Honestly, it depends on the order quantity. Normally, the produce period is 35-60days.

Q: What is your terms of delivery?
A: We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
