Food Paper Bag Making Machine

This machine features a continuous function of automatic paper suction gluing, creasing, bottom sticking and bag formation at a stroke. The machine has automatic force controlling machine and the function of color marking tracking.

Product description:

shopping Paper bag making machine

Model

HWFD220

HWFD280

HWFD330

HWFD450

HWFD540

Bag Tube Length

190-370mm

270-530mm

270-530mm

270-530mm

400-770mm

Bag Length

150-320mm

225-470mm

225-470mm

210-460mm

320-680mm

Bag Width

80-220mm

120-280mm

150-330mm

220-450mm

250-540mm

M Side Insert Depth

25-60mm

30-90mm

30-90mm

40-110mm

60-130mm

Bottom Width

50-120mm

60-180mm

60-180mm

80-220mm

120-260mm

Side Edge Width

20-30mm

20-30mm

25-30mm

25-30mm

30mm

Bottom Edge Width

10-25mm

15-30mm

15-30mm

20-30mm

20-30mm

Paper Thickness

50-130g/㎡

60-160g/㎡

60-160g/㎡

80-160g/㎡

90-160g/㎡

Paper Inner Core Diameter

ᴓ76mm(3”)

ᴓ76mm(3”)

76mm(3”)

76mm(3”)

76mm(3”)

Paper Roll Diameter

ᴓ1200mm

ᴓ1200mm

ᴓ1200mm

ᴓ1200mm

ᴓ1200mm

Paper Roll Width

280-710mm

380-950mm

450-1050mm

630-1370mm

770-1630mm

Bag Making Speed

30-200pcs/min

30-180pcs/min

30-160pcs/min

30-150pcs/min

30-120pcs/min

Air Source

≥0.12m³/m  0.6Mpa

≥0.12m³/m  0.6Mpa

≥0.12m³/m  0.6Mpa

≥0.12m³/m  0.6Mpa

≥0.12m³/m  0.6Mpa

Power Supply

10kw

12kw

12kw

15kw

18kw

Machine Weight

5500kgs

7000kgs

8000kgs

10000kgs

11500kgs

Machine Dimension

9000X3200X1800mm

10500X3600X1900mm

10500X3700X1900mm

10500X3800X1900mm

11500X3900X1900mm

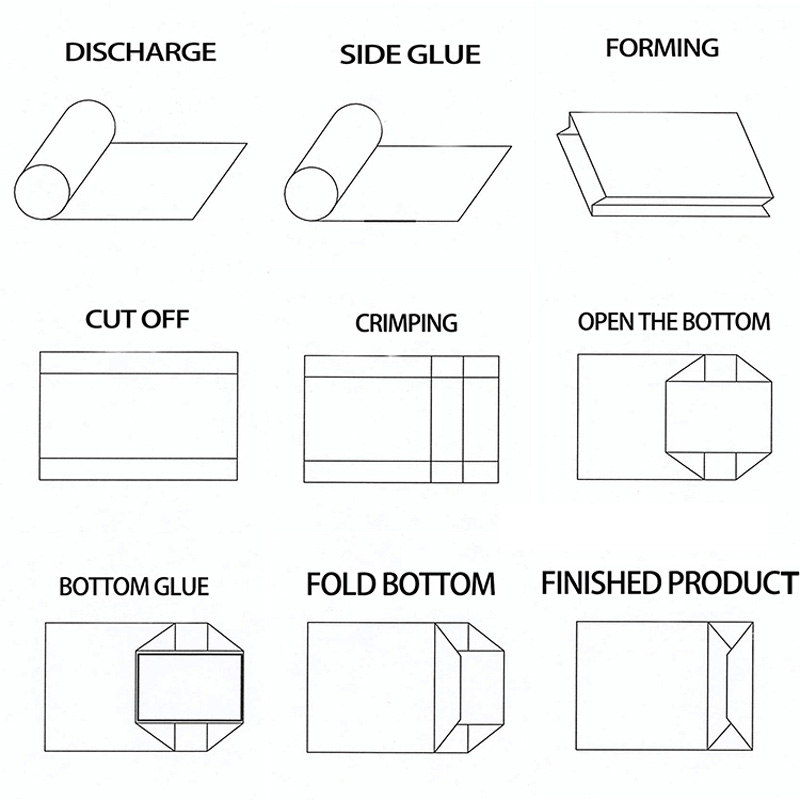

Forming Process:

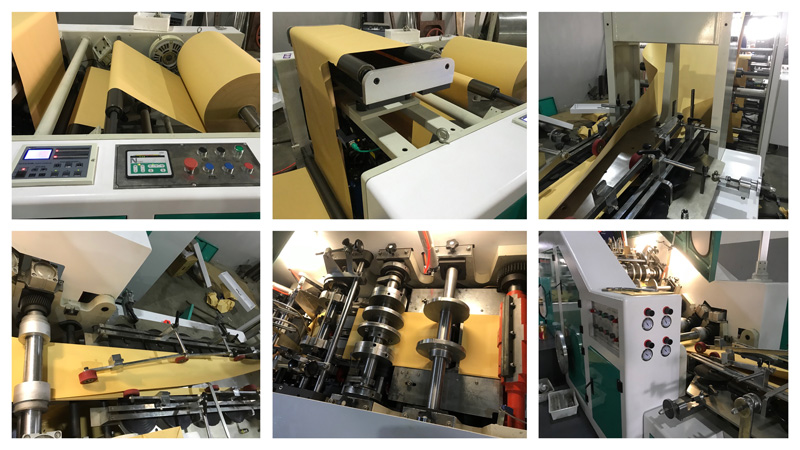

Machine Details

paper shopping bag making machine

Sample Picture:

paper shopping bag making machine

PRODUCTS FEATURE:

  • This machine features a continuous function of automatic paper suction gluing, creasing, bottom sticking and bag formation at a stroke. The machine has automatic force controlling machine and the function of color marking tracking. All the operation procedures are controlled by PLC, saving labor force. This is ideal equipment for making paper bag for shopping, grocery paper bag, Bakery, loading foods and so on.
  • In addition, the function of sticking Windows is added to make the products better applied in the fields such as food bags and make the products more competitive.





OUR SERVICE:

  • Provide trial video before shipment.
  • Make sure the machine is in good condition and the debugging is finished before shipment.
  • Provided 12 months warranty.
  • 24 hours online customer service.
  • Provide professional installation engineers on-site installation and equipment commissioning.In case of overseas installation and commissioning, the buyer will pay all the expenses of the engineer.

OUR ADVANTAGE:

  • Our company is engaged in direct foreign trade for more than 10 years, with rich experience and high quality reputation.
  • Strong production capacity and fast delivery time.
  • As a professional paper bag manufacturer, we speak directly to the engineers and get to know the machines better.
  • Strong research force and sufficient talent reserve.
  • Professional after-sales service, timely solve all problems for you.

Packing:

Stretch film packing & in container

shopping paper bag making machine

FAQ:

Q: What is your after-sales service ?
A: Our after-sales service is first class.We have a powerful team to help you solve problems.The warranty is one year and if the machine is damaged by natural not by human,we can send the new parts to you for free.

Q:Do you have machines in stock to sell?
A:No,we produce according to customer requirements.

Q:Anything we need to know in order to buy a suitable machine? What information should I let you know if I t a quotation?
A:First, we were informed of the raw materials for the bags. Second, sizes of the paper bags, thickness of paper. Third, tell if you need to add other functions, such as stickup, windowing, working, printing press, etc. And send sample bag picture if available..
