Product description：

Model	HWFD220	HWFD280	HWFD330	HWFD450	HWFD450B	HWFD540
Bag Tube Length	190-370mm	270-530mm	270-530mm	285-530mm	420-760mm	420-760mm
Bag Length	150-320mm	225-470mm	225-470mm	225-470mm	320-680mm	340-680mm
Bag Width	80-220mm	120-280mm	120-330mm	220-450mm	200-450mm	250-540mm
Bottom Width	50-120mm	60-160mm	60-180mm	80-220mm	80-240mm	120-260mm
Side Edge Width	20-30mm	25-30mm	25-30mm	30mm	30mm	30-40mm
Bottom Edge Width	10-20mm	15-25mm	15-25mm	20-30mm	20-30mm	20-30mm
Paper Thickness	50-130g/㎡	60-160g/㎡	60-160g/㎡	80-160g/㎡	80-160g/㎡	90-160g/㎡
Paper Inner Core Diameter	ᴓ76mm(3”)	ᴓ76mm(3”）	76mm(3”）	76mm(3”）	76mm(3”）	76mm(3”）
Paper Roll Diameter	ᴓ1300mm	ᴓ1300mm	ᴓ1300mm	ᴓ1300mm	ᴓ1300mm	ᴓ1300mm
Paper Roll Width	280-710mm	385-910mm	385-1050mm	630-1370mm	590-1370mm	770-1640mm
Bag Making Speed	30-200pcs/min	30-180pcs/min	30-160pcs/min	30-150pcs/min	30-120pcs/min	30-120pcs/min
Air Source	≥0.12m³/m 0.6Mpa	≥0.12m³/m 0.6Mpa	≥0.12m³/m 0.6Mpa	≥0.12m³/m 0.6Mpa	≥0.12m³/m 0.6Mpa	≥0.12m³/m 0.6Mpa
Power Supply	10kw	12kw	12kw	12w	16.5kw	16.5kw
Machine Weight	5500kgs	7000kgs	8000kgs	9000kgs	10000kgs	12000kgs
Machine Dimension	8000X2980X1800mm	9700X2980X1900mm	9800X3050X1900mm	10200X3150X2200mm	11265x3400x2200mm	11250X3400X2160mm

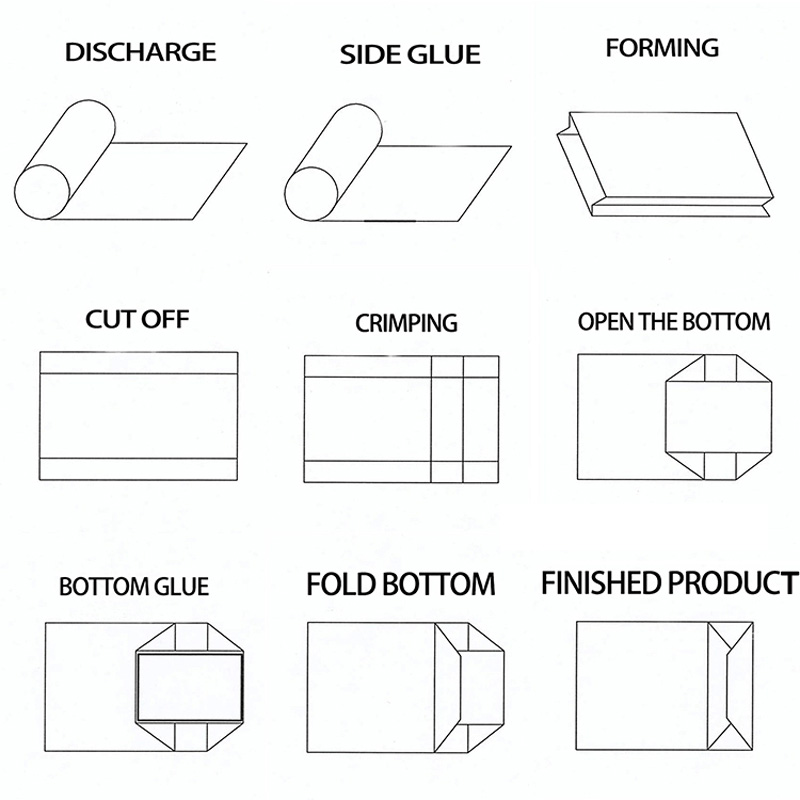

Forming Process:

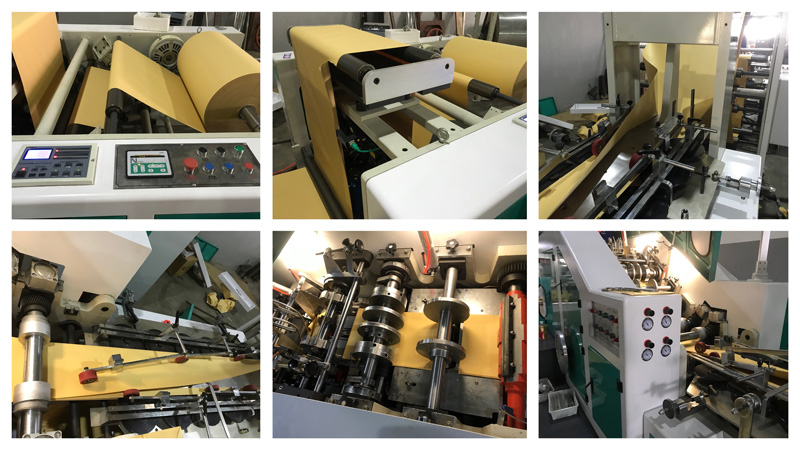

Machine Details

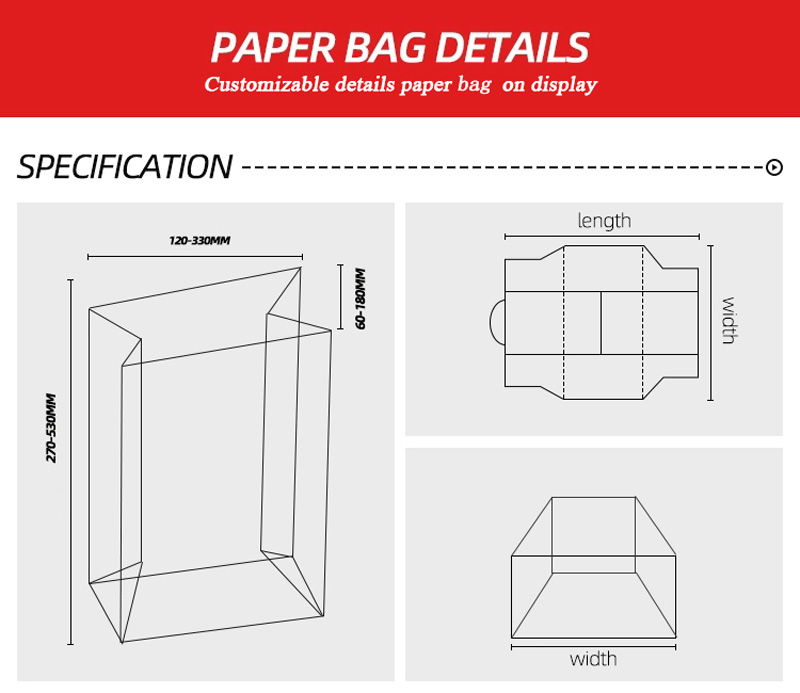

Sample Picture:

PRODUCTS FEATURE:

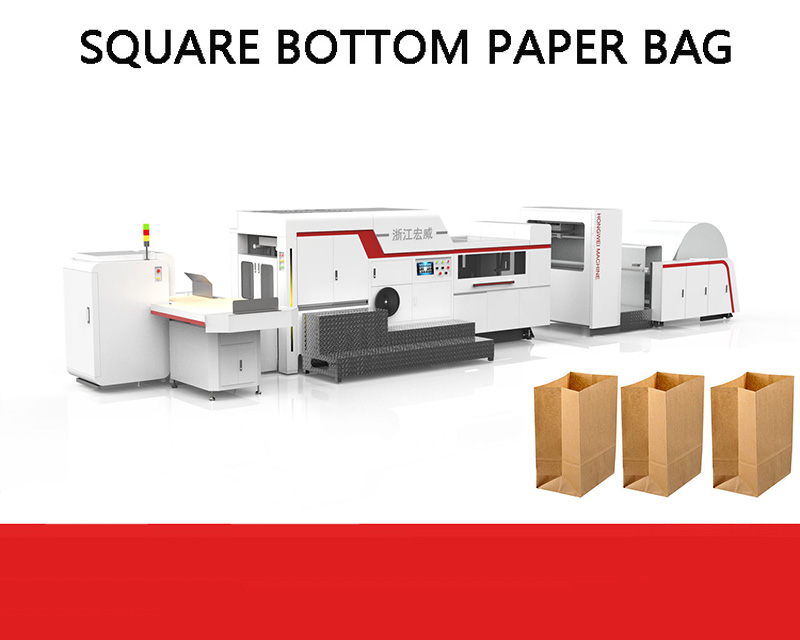

This machine can use the rolling paper, which is made of primary color paper or printed to produce square bottom paper bag to one time. This machine can produce various of paper bags, with fast speed, high production efficiency, is an ideal equipment for paper bag production.
The machine operation more convenient, more efficient, more stable is in the production of a variety of different paper bags, fenestration bread bags, leisure food bag, bag of bread, dried fruit bags and so on environmental paper bag paper bag machine equipment.
According to customer needs, two/ four-color printing machine, Paper bag windowing device and paper bag hand holing device can be customized.

OUR SERVICE:

Provide trial video before shipment.
Make sure the machine is in good condition and the debugging is finished before shipment.
Provided one-year warranty.
24 hours online customer service.
Provide engineers to go abroad to the site debugging and training services (customers pay fees, except during the epidemic period).

OUR ADVANTAGE:

Our company is engaged in direct foreign trade for more than 10 years, with rich experience and high quality reputation.
As a professional paper bag manufacturer, we speak directly to the engineers and get to know the machines better.
As a factory, we can offer better prices.

Packing:

Stretch film packing & in container.

FAQ：

Q: How about the Payment Terms?
A: We can accept payment by TT, L/C, 30% deposit when order is confirmed,70% balance paid before shipment.

Q: How does your factory control the quality?
A: Superior quality and good service is our eternal goal. We place great emphasis on quality control when producing and test all the functions thoroughly before delivery.

Q: Can your machine be customized?
A: Yes, we can customize the machine according to your needs like bag sizes, bag type, and capacity in the market ect.
