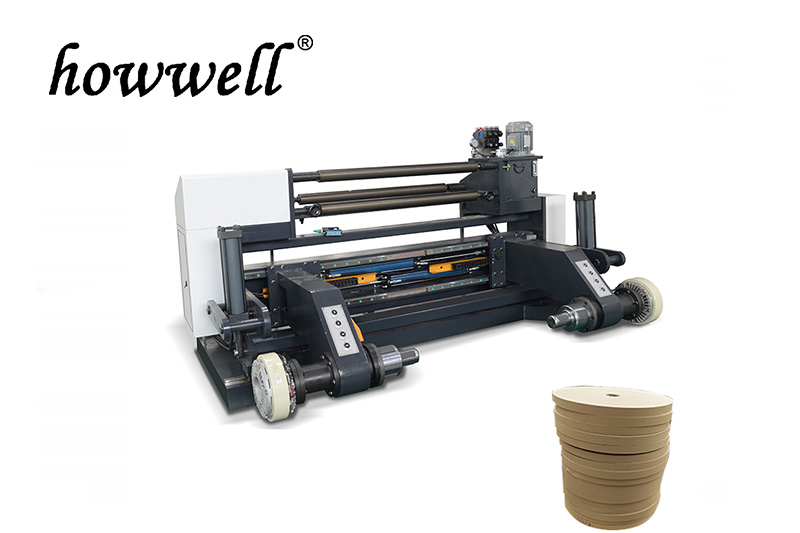

Paper Slitting Rewinding Machine

This machine is suitable for separating and cutting such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and Paper Roll, etc. And can cut edge, separate and cut material according to different requirements during production.

Application:

This machine is suitable for separating and cutting such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and Paper Roll, etc. And can cut edge, separate and cut material according to different requirements during production.

Feature

1. Automatic Thermal Paper Rolls Slitting Machine is equipped with PLC and HMI (touch screen) control system, all the parameters are displayed on the monitor.
2. Equipped with frequency inverter to control the motor.
3. Equipped with inverter motor for feeding, and one motor for automatic loading.
4. Equipped with Auto Tucker to tuck in the paper to cores automatically then rewinding.
5. Equipped with emergency switch.
6. All transmission rollers have been dynamic/static balance treated.
7. All the parts are treated by CNC processing to provide high precision.

Main Technical Specification



Model

HWFQ-1300A

HWFQ-1600A

Suitable material

PE,PP, BOPP, PET,CPP,Paper, PVC, etc

Max. Unwind diameter

850mm

850mm

Max. Unwind width

100-1300mm

100-1600mm

Paper core inner diameter

76mm

76mm

Max. cutting width

40-1300mm

40-1600mm

Machine max.speed

10-200m/min

10-200m/min

Max. slitting speed

10-170m/min (perforation running speed different)

Rewind diameter

40-600mm×2 roll(depend on roll width)

Main motor

4kw

5.5KW

Accurate of adjustment

±0.5mm

±0.5mm

Total power

6KW

7.5KW

Gross weight

2500KG

3300KG

Overall size

3200×2200×1700mm

3200×2400×1700mm

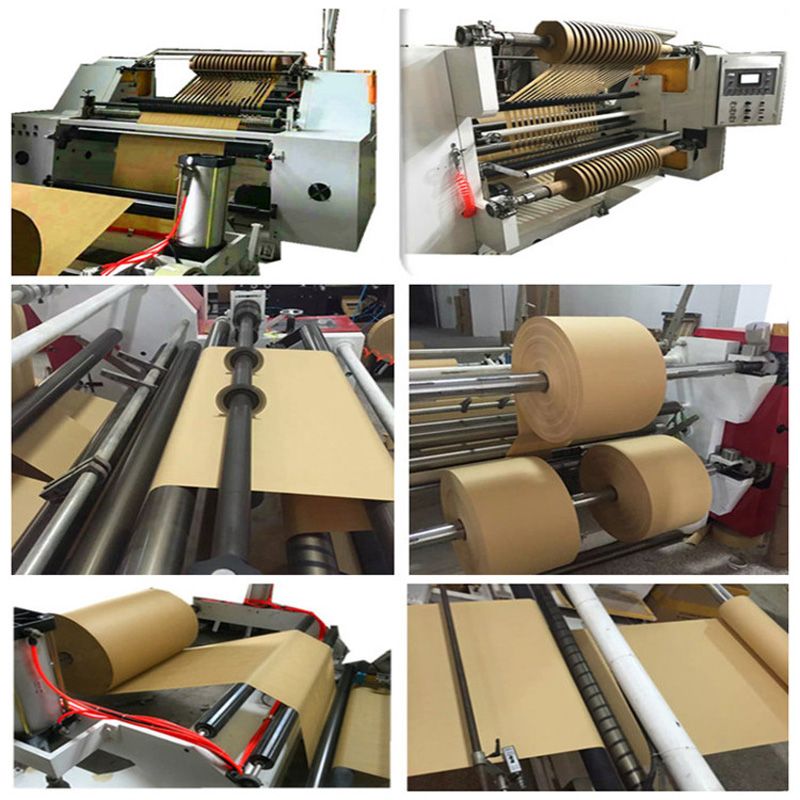

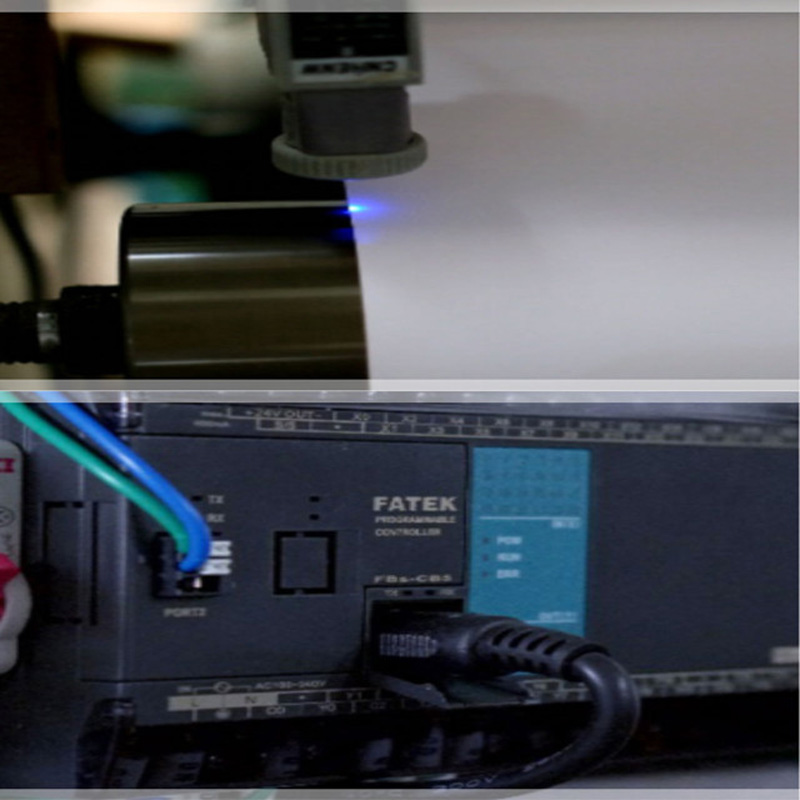

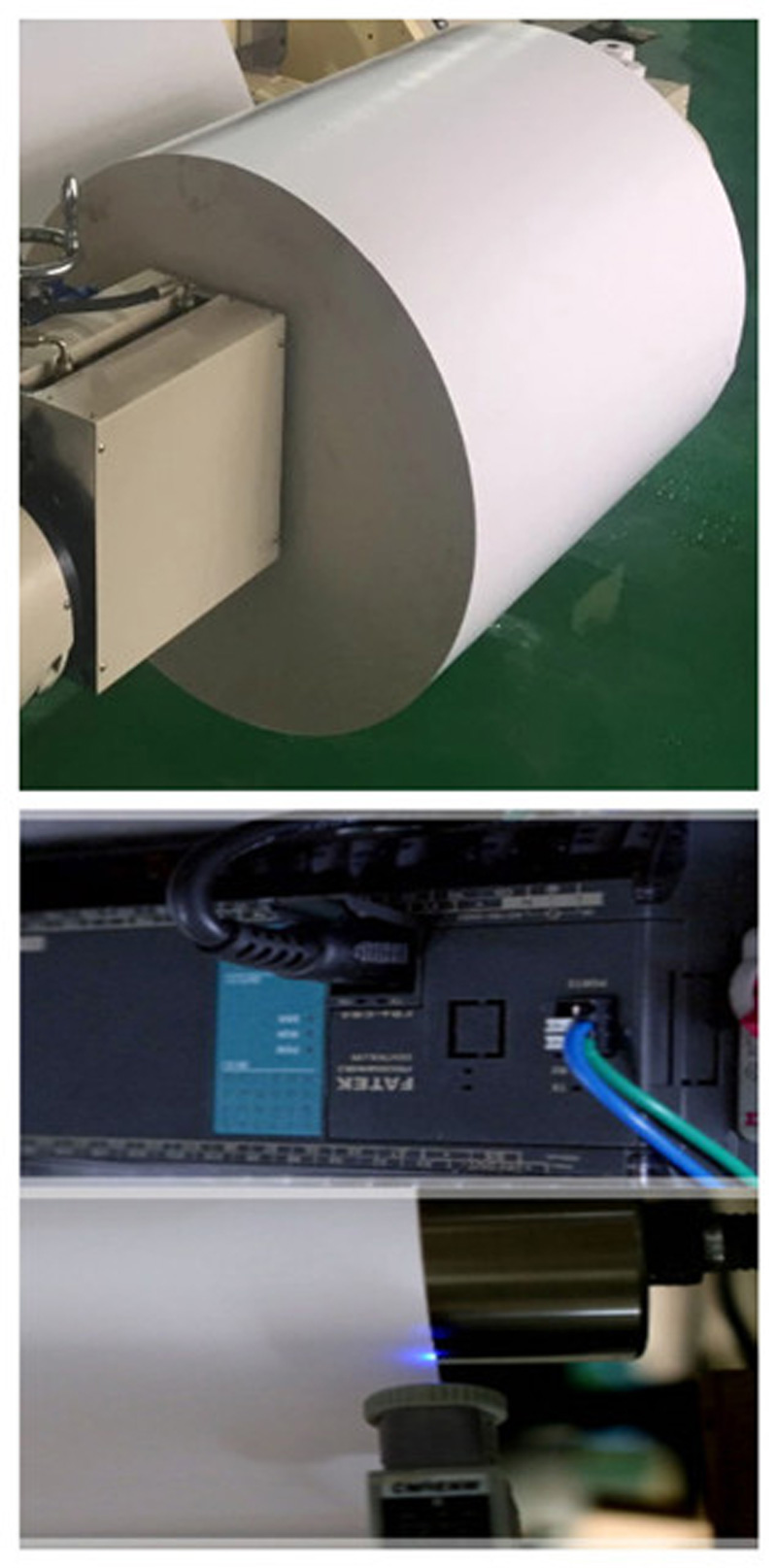

Details Photo:

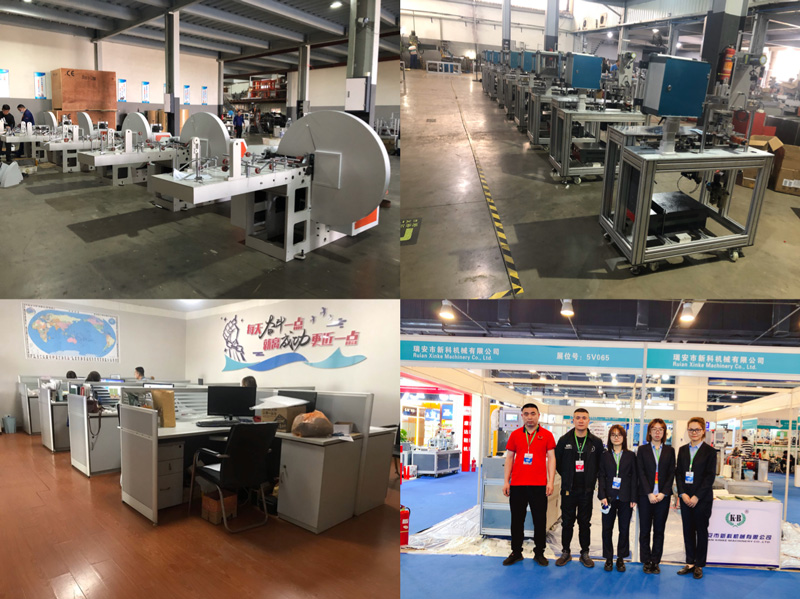

Company Information:

Our Service:

1.More Professional service in Packaging and printing products exporting field
2.Better manufacture ability
3.Various payment term to choose:T/T,Western Union,L/C,Paypal
4.High quality/Safe material/Competitive price
5.Small order available
6.Quickly response
7.More safe and fast transport
8.OEM design for all customers

FAQ:
Q1. Payment Terms
A1. TT 30% down payment, 70% before shipment.

Q2. Delivery Time
A2. 15-30 working days from the receipt of the down payment.

Q3. Machine installation
A3. Xinke could assign the technician to the place for the on-site installation if requested by the purchaser.

Q4. Technical Support
A4. Every machine is assigned by a specialist. The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.

Q5. Demo and Testing
A5. Xinke built a training center for the clients and employees to study the machines operation. You are welcome to visit our factory anytime for the machines’ demo. Furthermore, we could run the machine with the materials provided by you and help you achieve your business efficiently.
