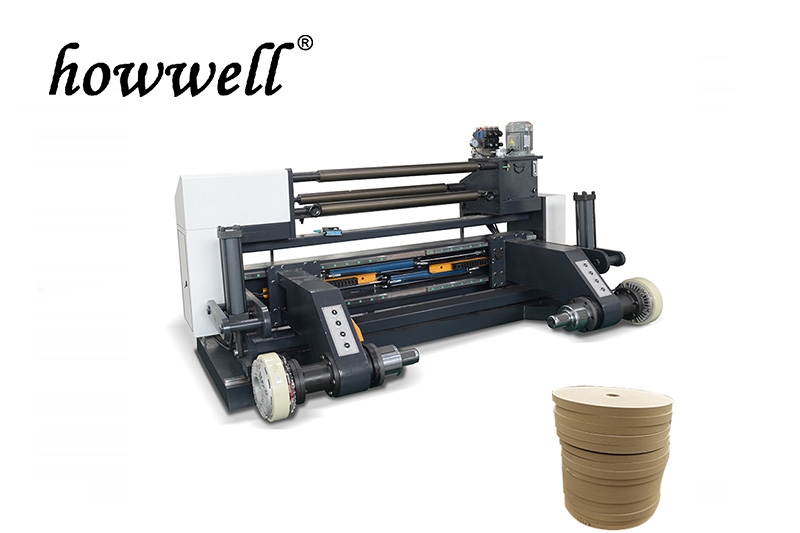

Paper Roll Slitting Machine

This machine is suitable for separating and cutting such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and Paper Roll, etc. And can cut edge, separate and cut material according to different requirements during production.

Application

This machine is suitable for separating and cutting such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and Paper Roll, etc. And can cut edge, separate and cut material according to different requirements during production.

Feature

1)This machine install a round knife device, it can slit the rolls paper within 350g.
2)Independent master control screen, more flexible and even easier operation.
3)Automatic deviation-rectifying of releasing, photoelectric eye is suitable for tracking the edge and color of transparent material.
4)Releasing tension adopts magnetic powder clutch control.
5)Rolling adopts magnetic clutch control.
6)Automatic slitter edge blowing-inhaling device.
7)Automatic meter counting of material moving length.

Main Technical Specification

Model	HWFQ-1300A	HWFQ-1600A
Suitable material	PE,PP, BOPP, PET,CPP,Paper, PVC, etc
Max. Unwind diameter	850mm	850mm
Max. Unwind width	100-1300mm	100-1600mm
Paper core inner diameter	76mm	76mm
Max. cutting width	40-1300mm	40-1600mm
Machine max.speed	10-200m/min	10-200m/min
Max. slitting speed	10-170m/min (perforation running speed different)
Rewind diameter	40-600mm×2 roll(depend on roll width)
Main motor	4kw	5.5KW
Accurate of adjustment	±0.5mm	±0.5mm
Total power	6KW	7.5KW
Gross weight	2500KG	3300KG
Overall size	3200×2200×1700mm	3200×2400×1700mm

Details Photo:

Company Information:

FAQ:

A: Do you provide sample ? Is it free?
A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.

B: How long is your delivery time?
B: The general delivery time is 30-45 days after receiving your order confirmation. Anther, if we have the goods in stock, it will only take 1-2 days.

C: What is your term of payment?
C: 30% down payment before producing and 70% balance payment before shipping.

D: Which payment form you can accept?
D: T/T, L/C,Western Union, PayPal etc. We accept any convenient and swift payment term.

E: Which certificate do you have?
E: CE and ISO.

F: Do you have the test and audit service?
F: Yes, we can assist to get the designated test report for product and the designated factory audit report.

G: What’s is your shipping service?
G: We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the shipping port.

F: Can you provide the FBA shipping service?
F: Yes, we have the good experience in providing the professional FBA service.
