Paper Roll Slitter

This machine is suitable for separating and cutting such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and Paper Roll, etc. And can cut edge, separate and cut material according to different requirements during production.

Application:

This machine is suitable for separating and cutting such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and Paper Roll, etc. And can cut edge, separate and cut material according to different requirements during production.

Feature

1)This machine install a round knife device, it can slit the rolls paper within 350g.
2)Independent master control screen, more flexible and even easier operation.
3)Automatic deviation-rectifying of releasing, photoelectric eye is suitable for tracking the edge and color of transparent material.
4)Releasing tension adopts magnetic powder clutch control.
5)Rolling adopts magnetic clutch control.
6)Automatic slitter edge blowing-inhaling device.
7)Automatic meter counting of material moving length.

Main Technical Specification

Model

HWFQ-1300A

HWFQ-1600A

Suitable material

PE,PP, BOPP, PET,CPP,Paper, PVC, etc

Max. Unwind diameter

850mm

850mm

Max. Unwind width

100-1300mm

100-1600mm

Paper core inner diameter

76mm

76mm

Max. cutting width

40-1300mm

40-1600mm

Machine max.speed

10-200m/min

10-200m/min

Max. slitting speed

10-170m/min (perforation running speed different)

Rewind diameter

40-600mm×2 roll(depend on roll width)

Main motor

4kw

5.5KW

Accurate of adjustment

±0.5mm

±0.5mm

Total power

6KW

7.5KW

Gross weight

2500KG

3300KG

Overall size

3200×2200×1700mm

3200×2400×1700mm

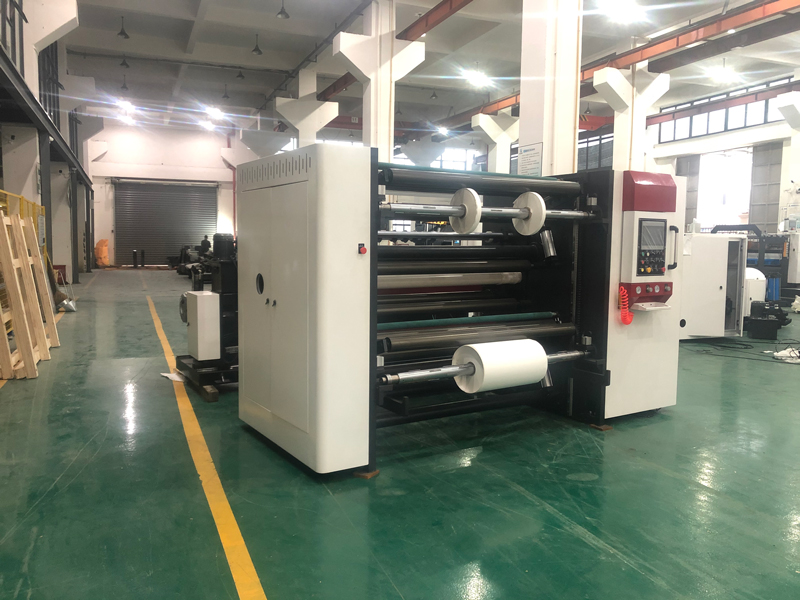

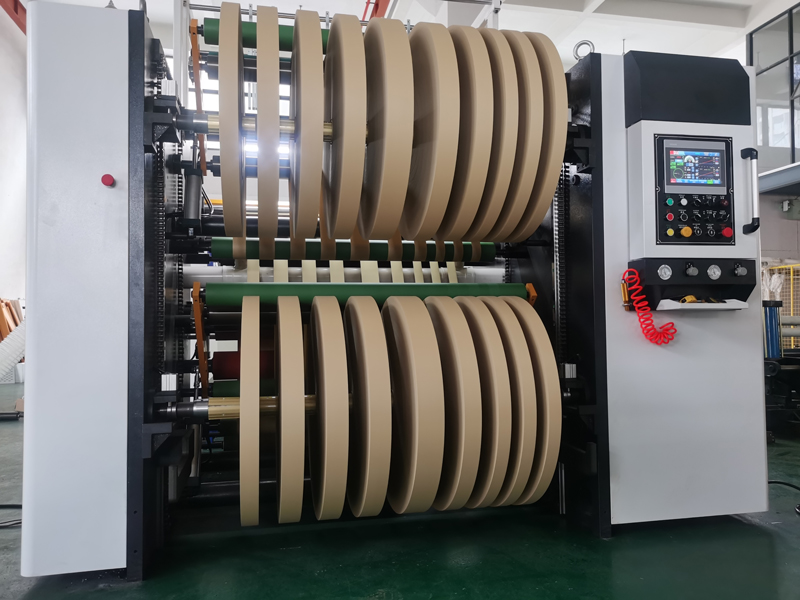

Details Photo:

Company Information:

FAQ:

Q1.Are you manufacturer or trade company?
A.We are manufacturer,and ourself do export business.

Q2:Can you produce slitting machine as our requirements?
Yes, OEM is available. We have professional team to do anything what you want from us.

Q3.Is there the products tested before shipping?
Yes, of course. All of our conveyor belt we all will has been 100%QC  before shipping. We test every batch every day.

Q4.How your quality guarantee?
We have 100% quality guarantee to customers. We will be responsible for any quality problem.

Q5.Can we visit your factory before place the order?
Yes,Very welcome that must be nice to set up good relationship for business.

Q6.Can we be your agent?
Yes, welcome to cooperation with this. We have big promotion in the market now. For the details  please contact with our overseas manager.
