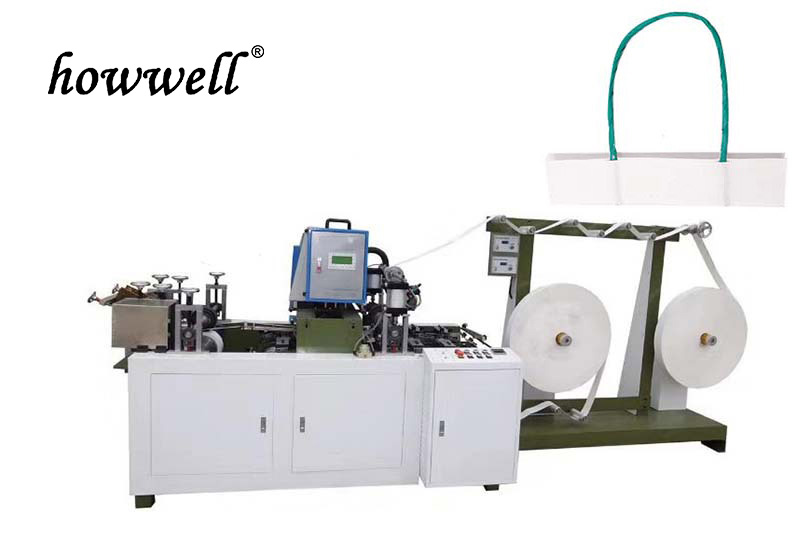

The twisted handle making machine is mainly supporting semi-automatic paper bag machines. It can quickly produce paper handle with twisted rope, which can be attached onto the paper bag without handles in further production and make it into paper handbags
Product Description
The twisted handle making machine is mainly supporting semi-automatic paper bag machines. It can quickly produce paper handle with twisted rope, which can be attached onto the paper bag without handles in further production and make it into paper handbags. It is working with 2 narrow paper rollers and paper rope to produce paper handle. It paste 2 rollers to clamp paper rope by hot melt glue(cold glue), pressed by plastic rollers, separated by machine knife, output automatically. The machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.
Machine Parameter
|
Paper Roll Core Diameter |
76mm |
|
Paper Rope Diameter |
3-4mm |
|
Paper Rope height |
10cm |
|
Paper Width |
30-40mm |
|
Paper length |
120-190mm |
|
Production Speed |
10000pairs/h |
|
Power Requirements |
380v |
|
Total Power |
7.8KW |
|
Total Weight |
1500KG |
|
Overall Dimension |
4000*1300*1500mm |
|
Glue Type |
Hot-melt glue |
Machine Process
|

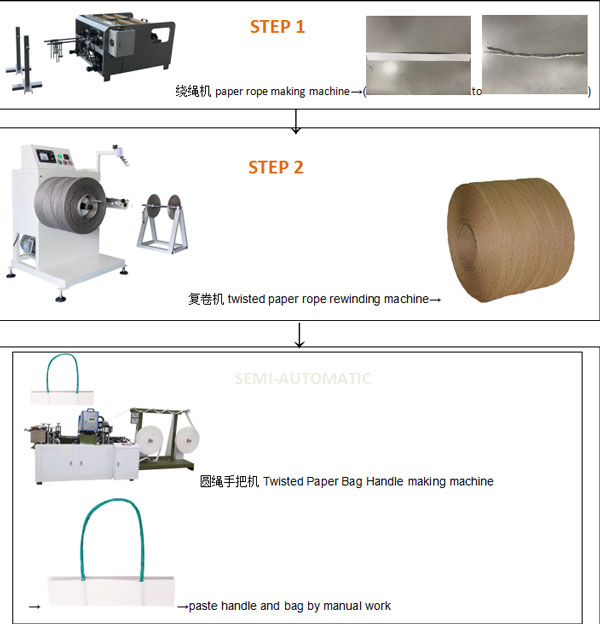

How to produce the paper bag with twisted rope handle 1.Slitting machine (optional) 2. Printing machine (optional) 3.Square bottom paper bag making machine 4.Paper rope making machine (optional) 5.Paper rope rewinding machine (optional) 6. Twisted rope handle making machine 7.Paste the handle in the paper bags by hand |
|

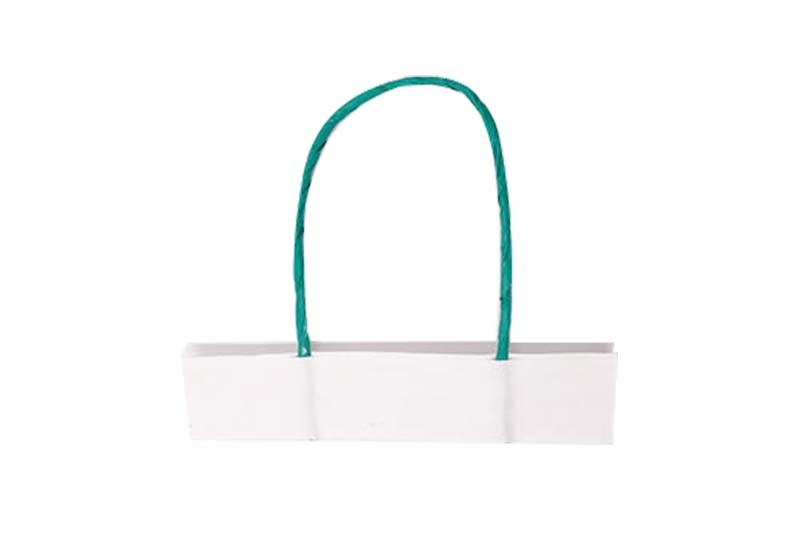

SAMPLE PICTURE:
PRODUCTS FEATURE:
1. The machine is easy to operate
2. It can produce paper handles with high speed speed.
3. The unit paper bag can lift the heavy things of 15kg at most, when the tension of raw materials reaches a certain level.
