Paper Twisted Rope Handle Making And Pasting Machine is main support to produce paper bag with handle. It is a high-speed machine to produce paper handles, it pastes twisted paper ropes and paper together for forming handles
Product Description
Paper Twisted Rope Handle Making And Pasting Machine is main support to produce paper bag with handle. It is a high-speed machine to produce paper handles, it pastes twisted paper ropes and paper together for forming handles, and then cut off them in separate, then paste the paper bags and handles together. Then a paper bag with handle is finished. It also has the functions of counting, putting in order and collecting.
Machine Parameter
|
Overall dimension |
L6000*W1600*H1500mm |
|
Motor brand |
Longbang geared motor |
|
Total power |
380V，10KW，50HZ |
|
Servo motor brand |
Siemens |
|
Servo motor power |
750W one group |
|
PIC programming brand |
Siemens |
|
Hot melt machine brand |
Huangshang Taiwan |
|
Mechanical arm |
HIWIN Taiwan |
|
Handle length |
152mm、190mm |
|
Paper width |
40mm |
|
Paper rope length |
360mm |
|
Paper rope height |
140mm |
|
Paper Gram Weight |
80-140g/㎡ |
|
Bag width |
250-450mm |
|
Bag height |
250-450mm |
|
Top opening size over 130mm |
(Bag Width minus the width of folding ) |
|
Production speed |
35-43pcs/min |

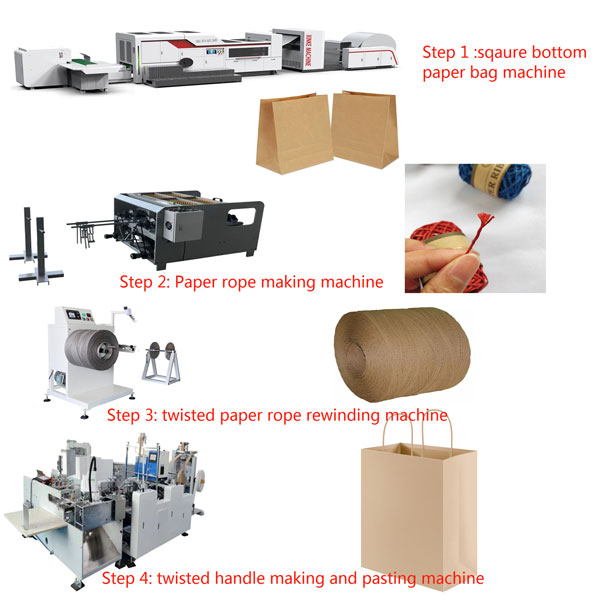

Machine Process
|
How to produce the paper bag with twisted rope handle 1.Slitting machine (optional) 2. Printing machine (optional) 3.Square bottom paper bag making machine 4.Paper rope making machine (optional) 5.Paper rope rewinding machine (optional) 6. Twisted rope handle making and pasting machine |
|

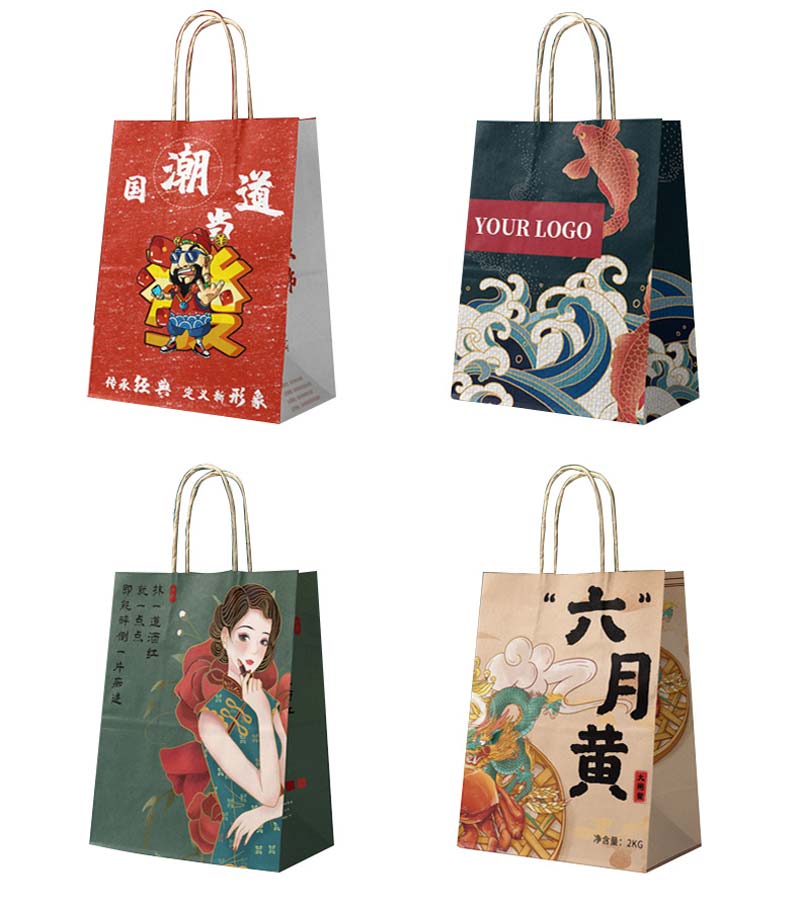

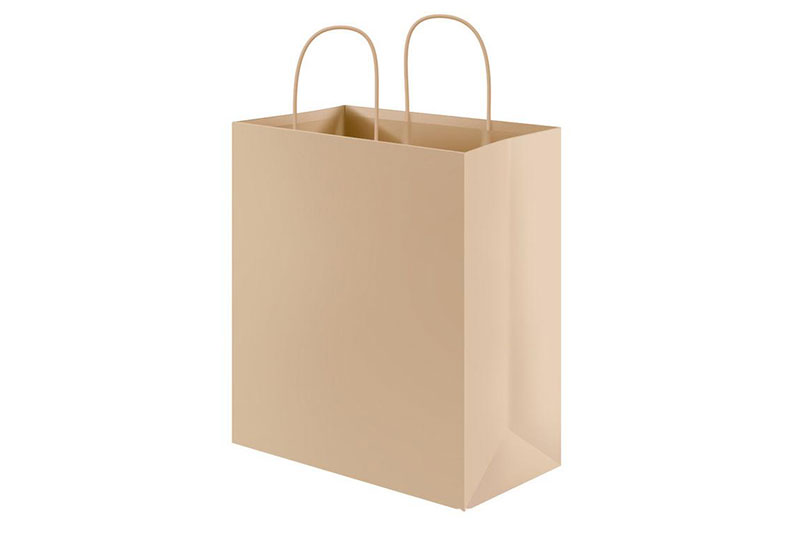

SAMPLE PICTURE:
PRODUCTS FEATURE:
1. The machine is easy to operate
2. It can produce paper handles with high speed speed.
3. The unit paper bag can lift the heavy things of 15kg at most, when the tension of raw materials reaches a certain level.
Our Service and Advantage
Packing:
Stretch film packing & in container.
FAQ：
Q: How long is the delivery time?
A:Within 35-60 days after receive 30% advance payment.
Q:How about the payment terms
A:30% by T/T as advanced payment, 70% by T/T or irrevocable L/C at sight before shipment(After inspection).
Q.1.Are You a Factory or Trading Company?
A: We are a factory, with 20 years experience on machines, our products sell very well all over the world.
Q:Is the sample available?
A: Yes, we are providing free samples are available for you to check the quality, customer need pay the delivery cost for the samples.
Q:.Where is your factory located? How can I visit there?
A:Our factory is located in Ruian, Zhejing China. The nearest airport is Wenzhou airport. It's about 40 minutes by plane from Shanghai (5 hours by train). All our clients, from home or abroad, are warmly welcomed to visit us.
