Paper Bag Flat Handle Making Machine

The flat paper handle making machine through a complex process, it makes four cut rolls of paper which have been cut into flat rope and flat handle once shaping, and can be combined with water glue system and the assembly line can rapidly increase production speed, it is suitable for mass production.

Product Description

Machine Parameter

Handle Spacing	83mm	95mm
Paper Rope Width	12mm	12mm
Paper Rope Width	10cm	10cm
Paper Width	40mm	40mm
Paper length	152mm	152mm
Paper Gram Weight	100-120gsm	100-120gsm
Production Speed	100pairs/min	100pairs/min
Voltage	380V	380V
Total Power	10KW	10KW
Total Weight	4000KG	4000KG
Overall Dimension	500015001500mm	500015001500mm

Machine Process

How to produce a paper bag with flat handle?
You need the following machine:

1.sltting machine (optional)

2.printing machine (optional)

3.square bottom paper bag making machine

4.flat handle making machine/flat handle making and pasting machine

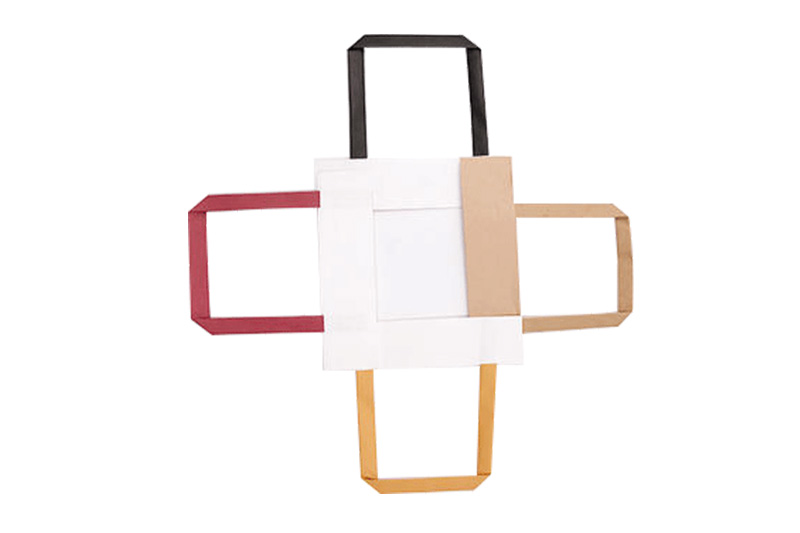

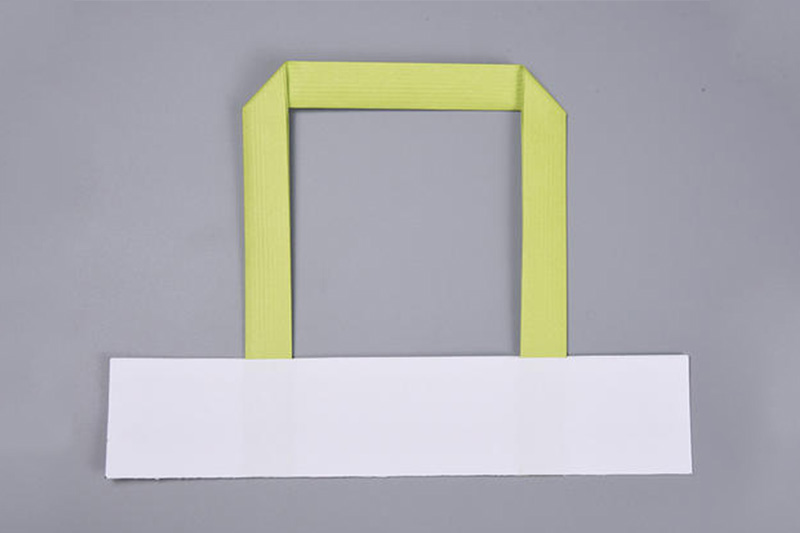

SAMPLE PICTURE:

PRODUCTS FEATURE:

1. The machine is easy to operate
2. It can produce paper handles with high speed speed.
3. The unit paper bag can lift the heavy things of 15kg at most, when the tension of raw materials reaches a certain level.

Our Service and Advantage

flat handle making machine

Packing:

Stretch film packing & in container.

flat handle making machine

FAQ：

Q: What's the main market of your company?
R: We have customers all over the world.

Q:What are the payment terms?
R: We usually accept payment by T/T, L/C, Western Union or Escrow.

Q : Where will the orders be shipped from?
R: It will ship from the main ports China. And We will find the shipping company which will offer the best and most economical freight for our customers.

Q :How do I process to the installation and operation?
R: Our engineers are available to service machinery overseas, help you finish installation of the production line, testing and commissioning.
After that he will train the workers how to operate and maintain the machines.
