Twisted handle paper bag making machine is fully automatic used to produce the square bottom paper bags with the twisted handle in one time. This machine use the paper rope and original or printed paper roll as raw materials.
Product Description
Twisted handle paper bag making machine is fully automatic used to produce the square bottom paper bags with the twisted handle in one time. This machine use the paper rope and original or printed paper roll as raw materials. It through handle forming, handle cutting, attach the handle,side glue, paper bag forming, cutting off, creasing, opening the bottom, bottom glue, fold bottom and bag delivery as process to produce the paper bags with the twisted handle. It widely used in some industries, such as shopping bags, shoes and clothing packaging bags, gift packaging bags, business bags and other varieties of hand-held paper bags.
|
Model |
HWFD220T（全） |
HWFD280T（全） |
HWFD330T（全） |
HWFD450T（全） |
HWFD450BT |
HWFD540T（全） |
|
袋筒长度Bag Tube Length（mm） |
190-270 |
270-430 |
270-430 |
285-430 |
420-660 |
420-660 |
|
纸袋长度Bag Length（mm） |
150-250 |
225-370 |
225-370 |
225-370 |
320-560 |
320-580 |
|
纸袋宽度Bag Width（mm） |
150-220 |
220-280 |
220-330 |
250-450 |
200-450 |
250-540 |
|
袋底宽度Bottom Width（mm） |
50-120 |
60-160 |
60-180 |
80-220 |
80-220 |
120-260 |
|
搭边宽度Side Edge Width（mm） |
20-30 |
25-30 |
25-30 |
30 |
30 |
30-40 |
|
纸张克重Paper Thickness（g/㎡） |
50-130 |
60-160 |
60-160 |
80-160 |
80-160 |
90-160 |
|
放卷宽度Paper Roll Width（mm） |
380-770 |
485-910 |
590-1050 |
690-1330 |
650-1330 |
770-1640 |
|
制袋速度Bag Making Speed（pcs/min） |
30-180 |
30-160 |
30-120 |
30-100 |
30-100 |
30-80 |
|
手把贴片长度Patch Length（mm） |
95 |
114.3 |
152.4 |
190.8 |
190.8 |
190.8 |
|
纸绳间距Handle Distance（mm） |
45 |
50 |
80 |
95 |
95 |
95 |
|
手把纸绳直径Rope Diameter（mm） |
ᴓ3-5 |
ᴓ3-5 |
ᴓ3-5 |
ᴓ4-6 |
ᴓ4-6 |
ᴓ4-6 |
|
总功率Power Supply（kw） |
25.5 |
25.5 |
25.5 |
25.5 |
30 |
30 |
|
机器重量Machine Weight（kgs） |
11000 |
12000 |
13500 |
16000 |
17000 |
18000 |
|
机器尺寸Machine Dimension（mm） |
10800x5500x3050 |
11500x5600x3100 |
12600X5880X3150 |
12800X6250X3350 |
13500X5300X2550 |
14000X6500X3250 |

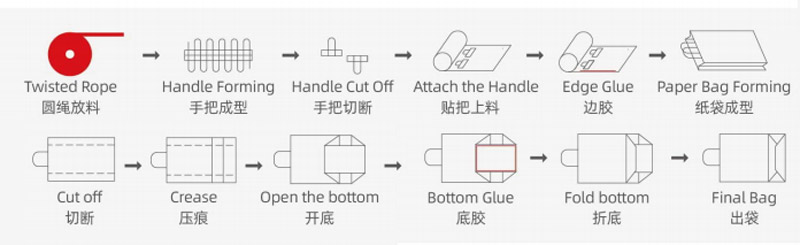

Production Process
Paper Bag Samples

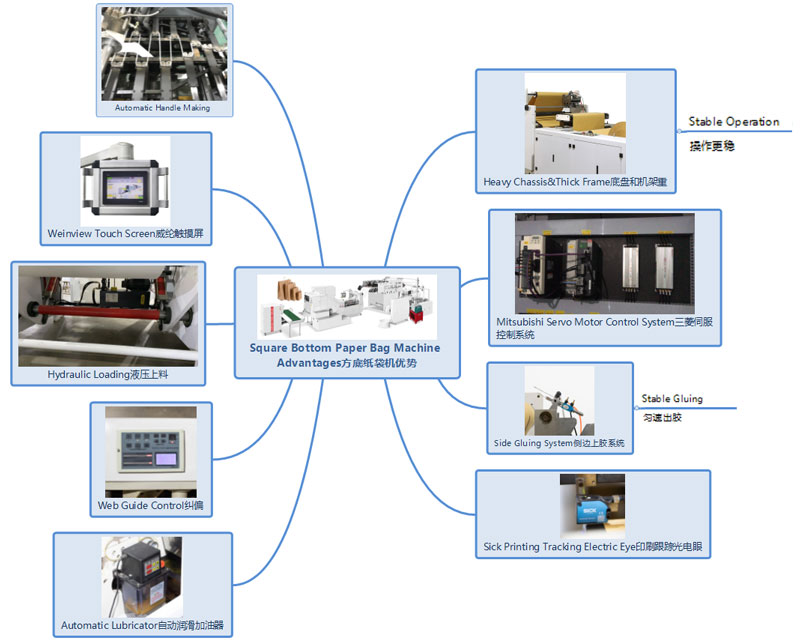

Our Advantages
After Sales Service
1 year warranty period
Longer service life
Video testing and adjustment the machine before shipment.
Video operation and manual book provide.
FAQ
Q.How does your factory do regarding quality control?
R:Quality is priority. Our Factory always attach great importance to quality controlling from the very beginning to the very end.
Q:how long is the warranty?
R:Within 1 year from date of the factory, if parts failure or damage (because of the quality problem ,except wearing parts)
Q:How to order?
R:1. Please tell us what model and quantity you need.
2. We will make a PI for you to confirm the order details.
3.When we pay deposit, we will start to produce.
4. Finally we deliver the goods within the stipulated time.
Q:What services can we provide?
R:Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
Q:Are you a trade or manufacturer
R:We are manufacturer.
